IC693PWR331D power module

IC693PWR331D power module

Product Details Introduction

Basic information

Model: IC693PWR331D

Module type: DC power module

Applicable system: GE Fanuc Series 90-30 PLC

input parameter

Input voltage range: 2 to 30 VDC (starting requires ≥ 8 VDC)

Rated input voltage: 24 VDC

Maximum input power: 50 W

Output parameters

Total output power: Maximum 30 W (total of all outputs)

+5V output: Provided to CPU and I/O modules, maximum 30W

+24V isolated output: used to supply power to 24V input modules or other control circuits, maximum 20 W

+24V relay output: exclusively for relay output modules, maximum 5 W

+5V output voltage range: 5.0 to 5.2 V

+24V output voltage range: 19.2 to 28.8 V

Protection features

+5V output overvoltage protection: triggered within the range of 6.4 to 7.0 V

+5V output overcurrent protection: maximum output current of 7A

+24V output overcurrent protection: power-off protection in case of output overload

Power outage duration: greater than 10 milliseconds (under full load conditions)

LED

PWR: Power Status

OK: The module is running normally

RUN: PLC is in operation

BATT: Battery Status Indicator

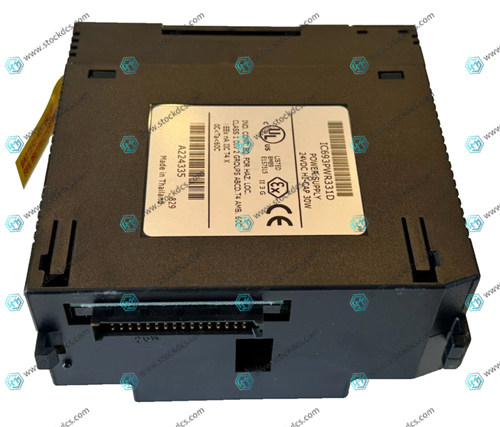

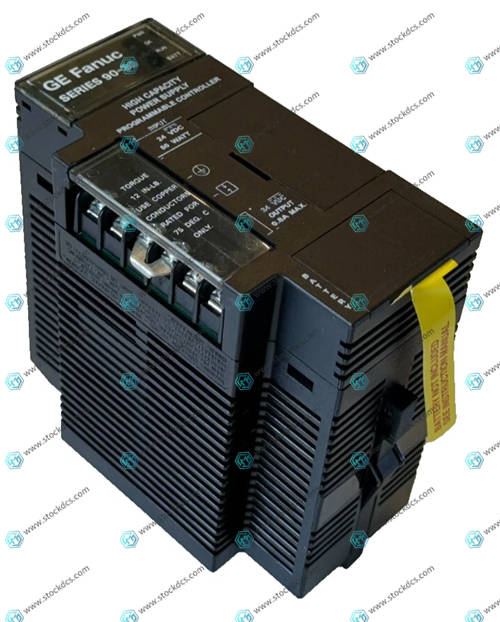

Product imag
