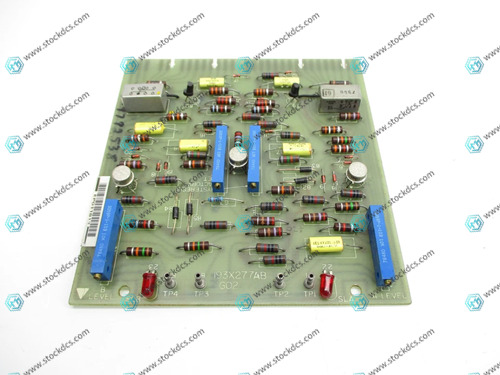

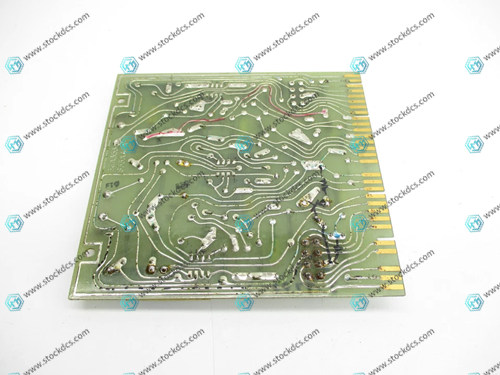

Product Details Introduction

The GE 193X277ABG02 Amplifier Board is one of the modules used in industrial control systems in the 193X series, typically used for signal amplification, control signal conditioning, or power drive functions. It is mainly used in GE's drive control system, process control system, or distributed control system (DCS).

1、 Product Overview:

Product model: 193X277ABG02

Product Name: Amplifier Board

Series: GE 193X Control Board Series

Function type: Analog/Power Signal Amplification

2、 Main functions:

Function type description

Signal amplification amplifies low-level input signals to higher levels, driving the next level module or load.

Control signal conditioning filters, isolates, and offsets analog signals to improve signal quality.

Power driven support provides drive signal output for actuators such as motors, relays, etc.

Feedback loop control can participate in closed-loop control systems to adjust control gain or feedback accuracy.

3、 Technical parameters (typical):

Project parameter description

Input signal analog signal (voltage/current) or logic control signal

Output amplified control voltage, current, or PWM signal (depending on the application)

Power supply voltage ± 15V DC or+5V DC (according to system power supply specifications)

Bandwidth ranging from tens of kHz to hundreds of kHz, suitable for industrial control signal processing

Installation method: Plug in card (insert into GE control system rack)

Cooling method: natural heat dissipation or system air cooling

The size standard follows the GE 193X series standard module size

Product imag
