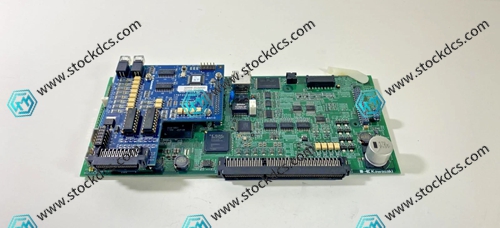

KAWASAKI 50999-0164R02 circuit board

KAWASAKI 50999-0164R02 circuit board

 Introduction

KAWASAKI 50999-0164R02 circuit board

1. Adapt to Kawasaki Industrial Robot Control Cabinet Standard Slot Installation

2. Partition the wiring of strong and weak electrical lines to avoid signal crosstalk

3. Built in surge absorption circuit to resist voltage transient impact and damage to components

4. The board surface is coated with a three proof layer, which is dustproof and moisture-proof, and suitable for the production environment in the workshop

5. Seismic welding process, robot operation vibration is not easy to cause solder joints to collapse

6. Equipped with hardware short-circuit protection, external circuit faults will not burn the motherboard

7. Real time collection of external sensor and limit switch status signals

8. Send control signals to drive solenoid valves and external actuators to operate

9. Stable communication transmission and low latency in data interaction with the robot controller

10. Wide temperature working range, stable operation in high temperature environment inside the control cabinet

11. Equipped with a hardware fault indicator light, it provides intuitive and quick troubleshooting for abnormal issues

12. The thickness of the copper foil is sufficient, and it is not easy to generate heat and oxidize under long-term on-off load

13. The layout of interface terminals is neat, and on-site wiring and maintenance operations are convenient

14. Factory aging full inspection, long-term uninterrupted operation with high stability

15. Native matching with robot systems of the same series, no need for modification or debugging when operating on the machine

KAWASAKI 50999-0164R02 is a dedicated I/O control board for Kawasaki robots, responsible for external signal acquisition and peripheral device linkage control of the entire machine.
