SMC P49522094 Control Board

SMC P49522094 Control Board

Product Introduction

SMC P49522094 control board is the main control board for SMC pneumatic and electric actuators, used for signal logic control of valve groups and electric cylinders.

Product Features

1. Native matching SMC pneumatic components, stable and smooth communication docking.

2. Support timing control of multiple solenoid valves and electric cylinders.

3. Onboard signal isolation to resist interference from workshop air sources and electrical systems.

4. Compact board design, suitable for installation inside valve island cabinets.

5. Comes with a fault indicator light for easy and quick troubleshooting of abnormalities.

Application Areas

1. SMC valve island assembly signal control.

2. Pneumatic circuit control for automated production lines.

3. Pneumatic transmission unit for semiconductor equipment.

4. Control of cylinder action in packaging machinery.

5. Control of clamping mechanism for assembly line fixtures.

6. Robot pneumatic gripper control system.

7. Pneumatic execution unit for new energy equipment.

8. Clean pneumatic equipment for food packaging.

9. Test the pneumatic switching device of the tooling.

10. Pneumatic spare parts matching for automation equipment.

SMC P49522094 control board coordinates the logical actions of pneumatic components and is a core spare part for automated pneumatic systems

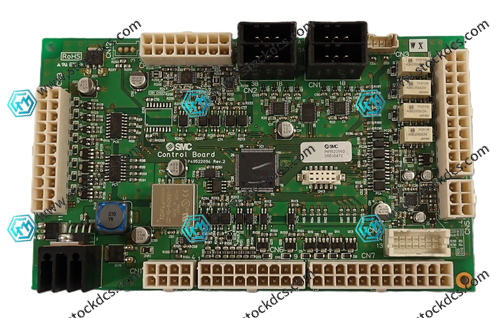

Product imag
