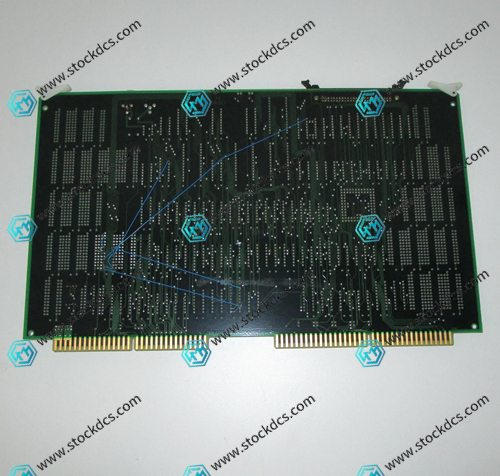

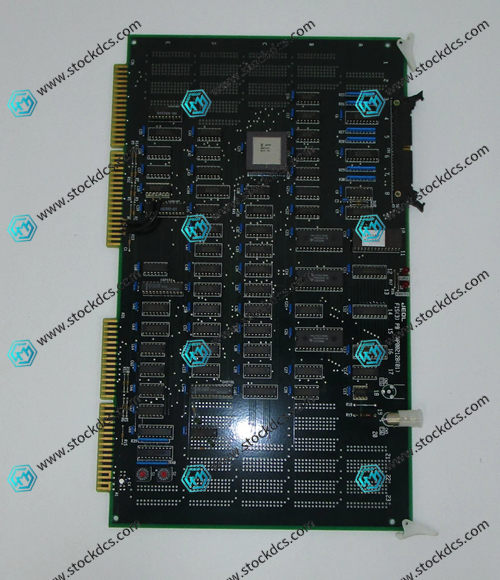

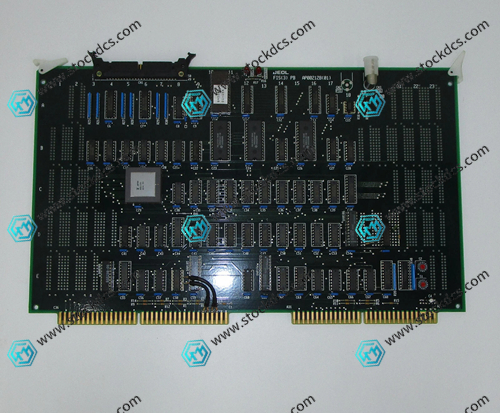

Jeol AP002128 (01) processor board

Jeol AP002128 (01) processor board

Product Introduction

Jeol AP002128 (01) processor board is a dedicated signal processing board for scanning electron microscopy equipment, responsible for imaging signal computation and data transmission.

Product Features

1. Native compatibility with JEOL scanning electron microscope host system, with good hardware compatibility.

2. High speed processing of imaging sensor data to ensure stable image acquisition.

3. Precise circuit layout to reduce signal distortion and improve imaging quality.

4. Onboard circuit protection, resistant to laboratory electromagnetic interference.

5. Original component selection, supporting long-term continuous operation of the instrument.

Application Areas

1. Host control of field emission scanning electron microscope.

2. Microscopic morphology detection of semiconductor materials.

3. Microscopic imaging analysis of research samples for new materials.

4. Failure analysis of microelectronic components.

5. Observation and testing of coating and film surfaces.

6. Characterization of microstructure of geological minerals.

7. High magnification microscopic observation of biological samples.

8. Supporting electron microscopy equipment for university laboratories.

9. Surface defect detection of precision components.

10. Nanoscale sample characterization equipment.

The Jeol AP002128 (01) processor board is a core spare part for electron microscopy imaging systems, ensuring stable operation of precision microscopy equipment

Product imag
