TEL 3281-000035-17 signal acquisition card

TEL 3281-000035-17 signal acquisition card

Product Introduction

TEL 3281-000035-17 signal acquisition card

Product Features

1. Multi channel signal acquisition, realizing the conversion between analog and digital signals.

2. Onboard signal conditioning to reduce electromagnetic interference in clean workshops.

3. Industrial grade components that can operate continuously for a long time.

4. Match TEL device backplane slots and directly plug and replace them.

5. Equipped with status monitoring, it is convenient to quickly locate faults.

Product application areas

1. TEL etching equipment sensing signal acquisition unit

2. Data acquisition of semiconductor thin film deposition equipment

3. Process signal reading of wafer cleaning machine

4. Monitoring of temperature and pressure signals in the process chamber

5. Signal transfer between semiconductor equipment boards

6. Maintenance operations for chip manufacturing production line machines

7. Semiconductor equipment spare parts replacement project

8. Precision process equipment signal detection module

9. Complete semiconductor equipment maintenance supporting board components

10. Renovation of old TEL process equipment system

This acquisition card is a dedicated board for TEL semiconductor equipment, which collects various process sensing signals and transmits them to the main control to ensure the stability of the semiconductor process

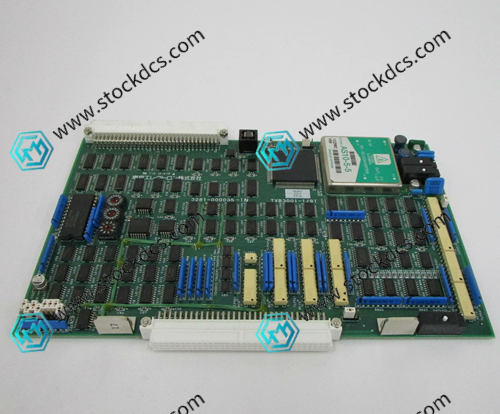

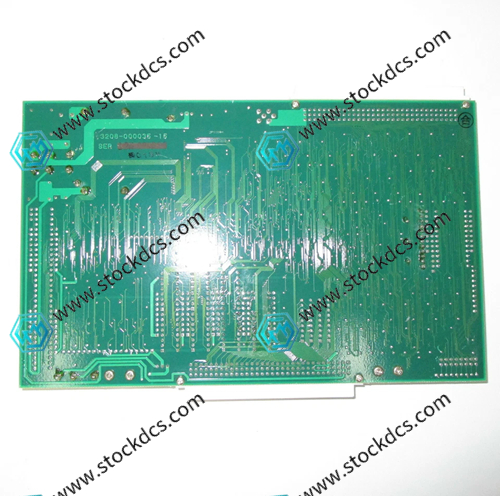

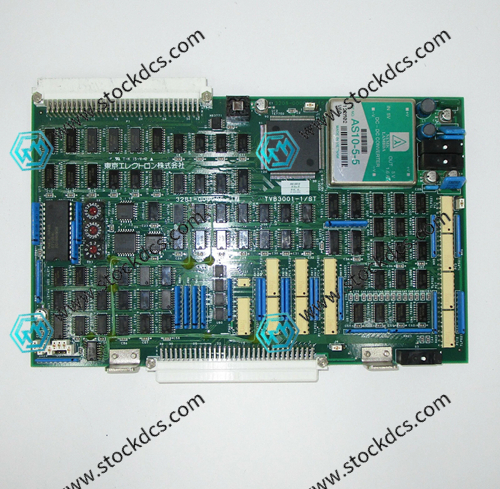

Product imag
