TEL 3381-000070-14 interface board

TEL 3381-000070-14 interface board

Product Introduction

TEL 3381-000070-14 interface board

Product Features

1. The multi-channel independent isolation design suppresses signal crosstalk and adapts to the complex electromagnetic environment of semiconductor equipment.

2. Built in signal conditioning circuit, high-speed bus transmission of instructions, low interaction delay between the main control and peripherals.

3. Slot type installation structure, integrated with surge protection, quick and convenient disassembly and replacement of spare parts.

Application Fields

1. TEL P-12XL wafer processing equipment

2. Signal relay unit for semiconductor etching equipment

3. IO adapter for main control of thin film deposition equipment

4. Wafer stage control signal interface module

5. Process chamber sensor signal acquisition board

6. Semiconductor gas flow control docking unit

7. Signal transfer of vacuum valve solenoid valve

8. Wafer Transfer Robot Control System

9. Clean workshop semiconductor testing equipment

10. Plasma process equipment signal interaction module

Product Specifications

1. Support synchronous acquisition and forwarding of digital IO and analog signals.

2. The onboard hardware self-test circuit can identify module faults when powered on.

3. The working temperature is between 0 and 50 ℃, and it is suitable for equipment cabinets without condensation conditions.

The TEL 3381-000070-14 interface board serves as a dedicated signal transfer board for semiconductor machines, responsible for data exchange between the main control and peripheral sensors and actuators, ensuring the stable operation of the entire wafer process equipment.

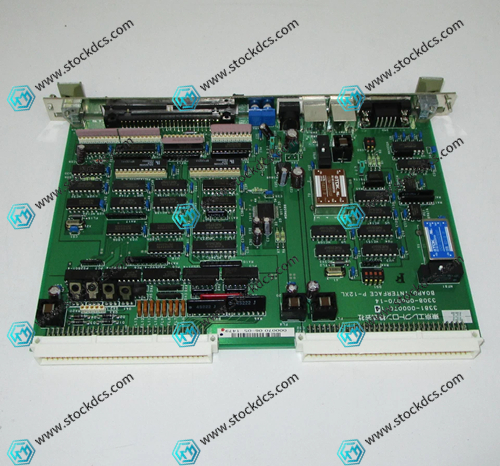

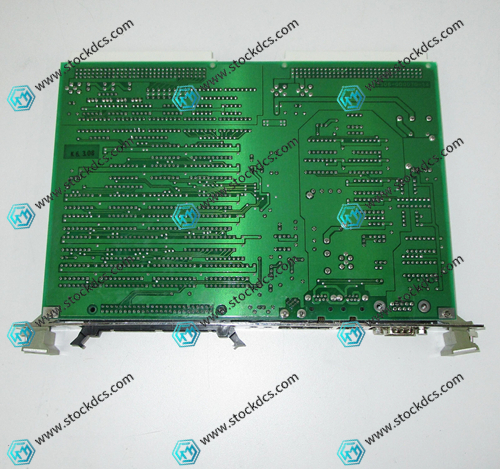

Product imag
