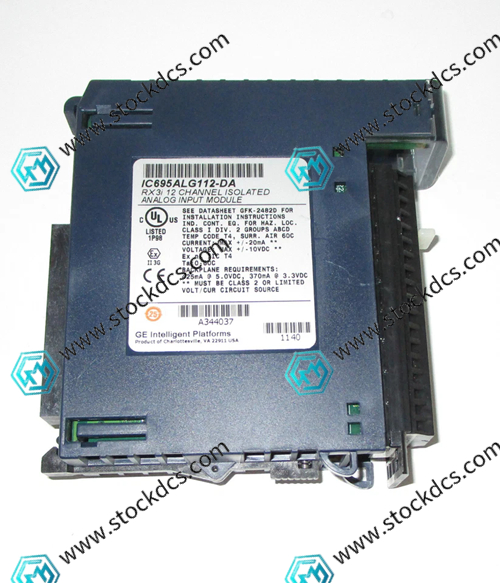

GE IC695ALG112-DA isolated analog input module

GE IC695ALG112-DA isolated analog input module

Product Introduction

The GE IC695ALG112-DA isolated analog input module is a GE RX3i series PAC system analog acquisition module that collects on-site current and voltage analog signals. It is designed with channel isolation to convert on-site sensing signals into PLC recognizable digital signals

Product Features

Twelve independent isolated acquisition channels, with mutual isolation between channels to block interference

Multiple range options, supporting flexible configuration of current and voltage signals to adapt to multiple sensors

Built in signal filtering circuit effectively suppresses industrial field power frequency noise

Standard backplane slot installation, easy to plug and unplug, short downtime for maintenance

Channel fault diagnosis, which can report real-time abnormal information of wire breakage and over range

Application Fields

Chemical DCS system analog signal acquisition unit

Temperature and pressure monitoring system for power plant boilers

Data acquisition module for oil and gas production process

Process parameter acquisition device for pharmaceutical factories

Sensor signal acquisition system for metallurgical production line

Online instrument signal acquisition for water treatment plants

I/O module for process monitoring of papermaking equipment

Cement production line process monitoring system

Rubber processing automation collection unit

Temperature and pressure detection system for food production line

Product Specifications

Backboard DC power supply, compatible with RX3i universal backplane

Industrial control cabinet operates stably and continuously in a wide temperature environment

Single channel supports multiple signal ranges such as 4-20mA and 0-10V

The GE IC695ALG112-DA isolated analog input module serves as a spare part for PAC system analog acquisition, isolating and collecting various on-site sensor signals, and is widely used in process industry automation projects

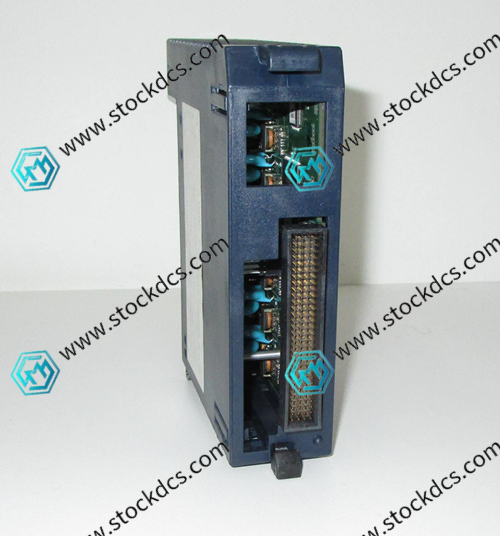

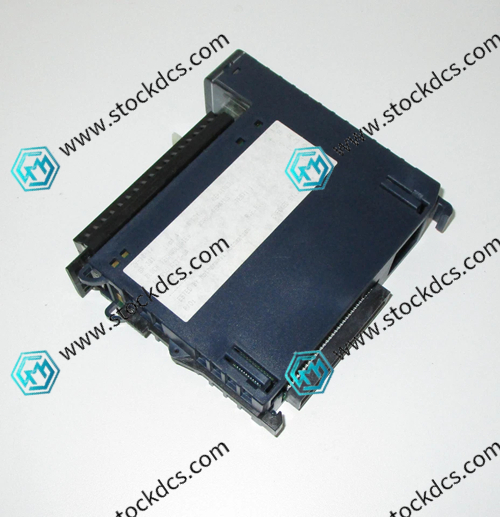

Product imag
