NI PCI-6704 183689R-01L Static Simulation Card

NI PCI-6704 183689R-01L Static Simulation Card

Product Introduction

NI PCI-6704 183689R-01L Static Simulation Card

Product Features

32 channel static analog output supports voltage and current dual type signal output

16 bit DAC has high conversion accuracy, good channel output stability, and low temperature drift

Each channel range can be independently configured to adapt to different sensor excitation requirements

Integrated 8-channel TTL digital I/O analog output and digital logic integrated control

Standard PCI bus board directly installed in industrial computer slot with DAQmx driver

Product application areas

Semiconductor equipment process setting signal output system

Laboratory precision DC excitation signal generation platform

Power supply automation calibration testing equipment

Industrial sensor calibration and testing device

Aircraft Electronics Hardware Closed Loop Testing System

Automotive electronic control unit signal simulation equipment

Vacuum process chamber parameter setting unit

Medical testing instrument signal simulation platform

Electronic component aging testing system

Automated HIL hardware in the loop simulation equipment

Product Specifications

Analog output with 32 channels, 16 bit resolution, 16 voltage channels, and 16 current channels

8-channel TTL bidirectional digital I/O digital channel

Bus specification standard PCI computer bus

NI PCI-6704 183689R-01L Static Analog Card is a multi-channel static analog output board used to output stable DC voltage and current signals, providing precise setting sources for various testing and industrial control systems

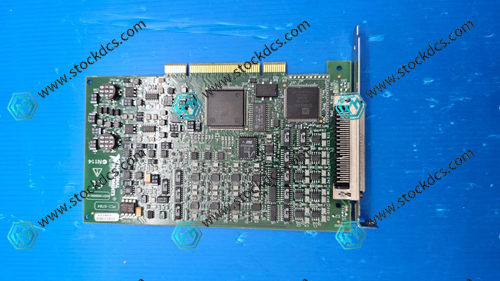

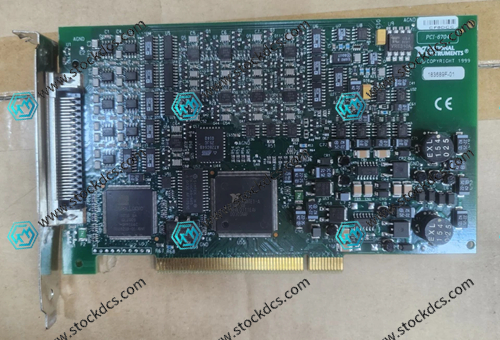

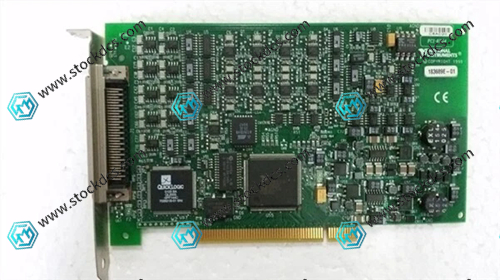

Product imag
