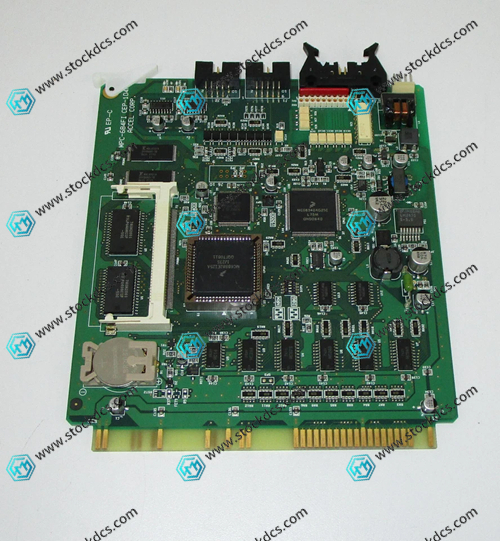

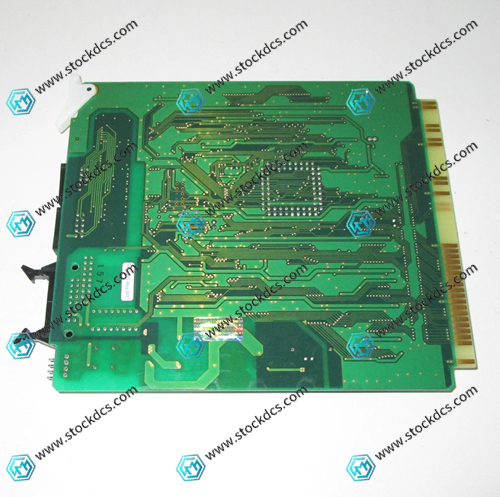

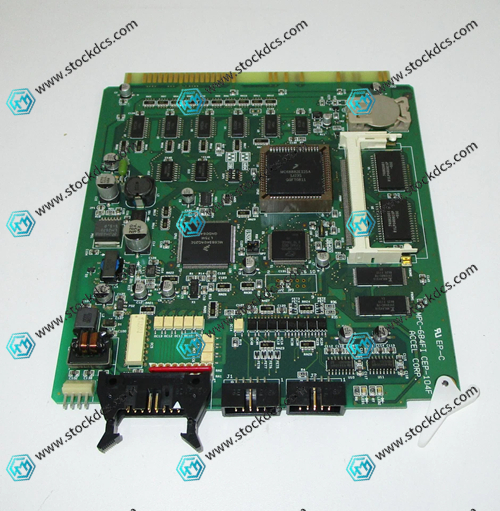

Accel MPC-684FI CEP-104F Control Circuit Board

Accel MPC-684FI CEP-104F Control Circuit Board

Product Introduction

The Accel MPC-684FI CEP-104F control circuit board is a Japanese Accel motion control CPU motherboard used for multi axis motion logic operations and signal scheduling of devices.

Product Features:

1. Equipped with a 68K processor, it has fast multi axis motion calculation speed.

2. Supports multitasking programming and has a built-in BASIC development environment.

3. The board comes with an RS232 serial port, which facilitates device communication and debugging.

4. Add EMI protection to the bus to resist electromagnetic interference in the workshop.

5. Onboard backup storage, power off to retain programs and parameters.

Application fields:

6. Precision automation equipment motion control system.

7. Electronic control unit for semiconductor packaging equipment.

8. Multi axis servo control for testing equipment.

9. Main control board for precision dispensing equipment.

10. Small CNC equipment motion controller.

11. Optical detection instrument control unit.

12. Material handling automation equipment.

13. Non standard automation production line control motherboard.

14. Replacement of spare parts for Accel old equipment.

15. Precision tooling motion execution equipment.

Product Parameters:

16. Core: MC68340 series CPU.

17. Power supply: DC5V, maximum output 3A.

18. Communication: Multiple RS232 serial interfaces.

The Accel MPC-684FI CEP-104F control circuit board is a dedicated CPU board for old precision automation equipment, which stably realizes multi axis linkage control
