TUCKER B 361 A E110 380 A Welding Control Board

TUCKER B 361 A E110 380 A Welding Control Board

 Introduction

TUCKER B 361 A E110 380 A Welding Control Board

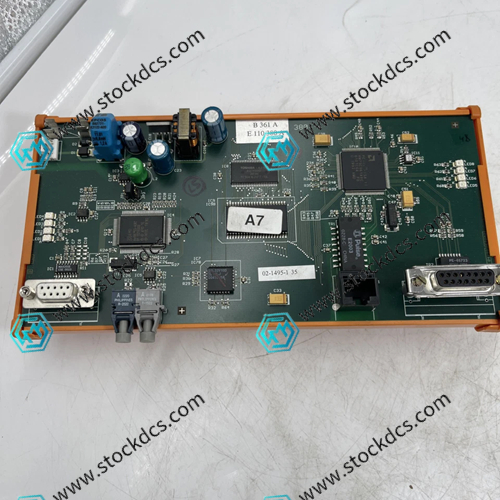

This TUCKER B 361 A E110 380 A welding control board is the main control board for the automotive production line stud welding machine, responsible for welding timing control and current closed-loop regulation.

TUCKER stud welding equipment main control circuit board

Real time control of the entire welding process including arc initiation, fusion welding, and nail dropping

Integrated power drive circuit, precise control of welding current duration

Equipped with a fault detection circuit to capture overcurrent and abnormal arc signals

The production workshop environment needs to be well ventilated to reduce the adhesion of welding slag and dust

When purchasing, check the engraved number on the board. Different versions cannot be directly replaced

During dismantling and maintenance, it is necessary to cut off the main power supply and do a good job of electrostatic protection

Before starting the machine, check the welding parameters and test the feedback signal of the welding gun action

Idle storage in anti-static bags, away from damp and corrosive environments

Application

Assembly and matching of automotive body stud welding machine

Maintenance of control cabinet for automated welding workstation

Transformation of control system for sheet metal nail planting equipment

Replacement of spare parts for production line stud welding machine malfunction

Complete set of vehicle welding equipment and electronic control matching

TUCKER B 361 A E110 380 A Welding Control Board Control Stud Welding Process Parameters and Action Execution.
