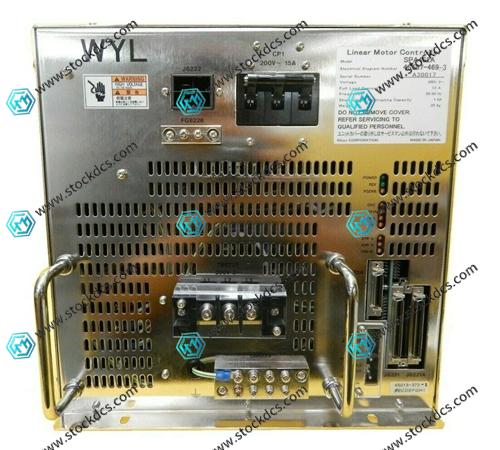

Nikon 4S587-469-3 Linear Motor Controller

Nikon 4S587-469-3 Linear Motor Controller

 Introduction

The Nikon 4S587-469-3 linear motor controller is the core driver board for motion control of the lithography machine platform.

Product Features:

1. Closed loop control has fast response, smooth start stop motion, and small positioning deviation

2. Strong resistance to electromagnetic interference, stable operation in complex environment of lithography workshop

3. Original modular design, direct replacement in situ, no need to modify wiring

4. Equipped with overload protection, it protects the linear motor body under abnormal working conditions

5. Adapt to high-frequency reciprocating motion of equipment, suitable for long-term continuous operation of production lines

Product Parameters:

1. Match the communication bus of the lithography machine to receive motion commands

2. Docking with grating encoder, real-time feedback of position data

3. Adapt to the regular operating temperature of internal equipment in the cabinet

4. Output driving signal to directly drive linear motor unit

5. Fault output alarm signal, convenient and fast fault location

Application fields:

1. Nikon lithography machine wafer platform linear motion drive control

2. Exposure workstation precision displacement platform servo control

3. Lithography equipment workpiece table linear motor drive matching

4. Old lithography machine control board aging and damaged spare parts replacement

5. Debugging and calibration of motion parameters after equipment overhaul

Nikon 4S587-469-3 directly controls the displacement accuracy of the platform and plays a key role in the lithography overlay effect.

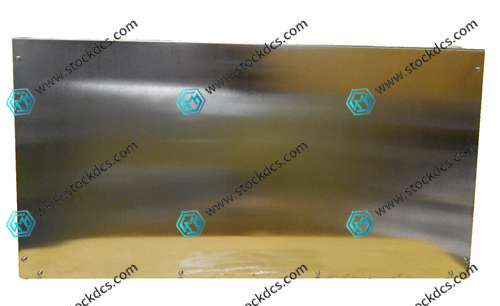

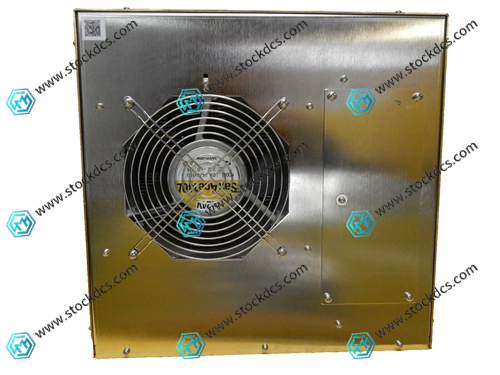

Product imag
