Glassman E11000101B power transformer

Glassman E11000101B power transformer

 Introduction

Glassman E11000101B is an internal dedicated transformer for high-voltage power supplies, mainly used for the maintenance and replacement of the entire Glassman high-voltage power supply, with solid high-voltage insulation.

5 product features:

1. Epoxy resin is fully encapsulated, with strong high-voltage insulation ability, and can suppress the risk of internal ignition and leakage.

2. The winding process is precise, with small output ripple, ensuring the stability of high-voltage power output.

3. Adapt to the size of the original power supply chassis, fix the pin positions, and replace directly without changing the board.

4. Low iron core loss, controllable heating under full load for a long time, reducing high-temperature aging faults.

5. Resistant to pulse impact, able to withstand instantaneous arc impact under high voltage conditions, with good durability.

5 product parameters:

1. Adapt the maximum output power of the whole machine to 80W, providing transformer support for the high-voltage module.

2. Suitable for AC input of 90-264VAC, compatible with laboratory and industrial workshop power supply.

3. The high voltage isolation level is 3kV, which meets the internal insulation requirements of the high voltage power supply.

4. Sealed dry structure, natural heat dissipation, no need for additional cooling accessories.

5. Suitable for environments with a temperature range of 0-50 ℃ and a humidity range of 10-85% without condensation.

5 application areas:

1. Replacement of original spare parts for Glassman series high-voltage power supply.

2. Internal components of high-voltage power supply unit for semiconductor equipment.

3. Maintenance of high-voltage power supply for X-ray and electron beam instruments.

4. Power supply components for high-voltage DC equipment in research laboratories.

5. Replacement of transformers in high-voltage equipment for industrial static electricity generation.

Overall, this belongs to the core magnetic components of the power supply and is only suitable for repairing the corresponding model of power supply. It is not recommended to use it for other equipment modifications. When selecting, be sure to check the overall model of the power supply.

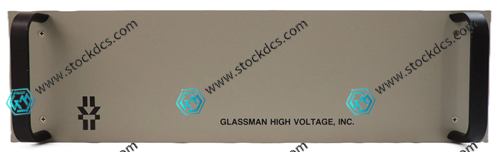

Product imag
