MATROX 0660-A1431 acquisition card

MATROX 0660-A1431 acquisition card

 Introduction

MATROX 0660-A1431 acquisition card

The MATROX 0660-A1431 acquisition card is compatible with industrial vision equipment, with stable image acquisition and suitable for semiconductor testing equipment.

1. High image capture clarity and distortion free image restoration

2. High speed transmission bandwidth, high frame rate collection without losing frames

3. Multi channel synchronous acquisition, multi camera collaborative precise synchronization

4. Onboard cache chip, buffering burst image data streams

5. Standard PCIe slot, easy to install for industrial computers

6. Hardware trigger interface, capable of linking light sources and sensors

7. Built in signal filtering to weaken on-site electromagnetic interference

8. Industrial wide temperature design, stable operation of high and low temperatures in the workshop

9. Improve SDK development package, debug software with simple adaptation

10. Multi layer protective circuit, anti static surge damage to the board

11. Small single slot design, saving internal space of the chassis

12. Seismic reinforcement layout, suitable for continuous vibration conditions of production lines

13. Power off parameters are retained, and there is no need for repeated configuration when restarting

14. Factory wide image inspection with good batch consistency

15. Low power consumption operation, long-term collection with low temperature rise

Overall, the MATROX 0660-A1431 acquisition card has stable acquisition and strong synchronization, making it the core acquisition component of semiconductor vision inspection systems.

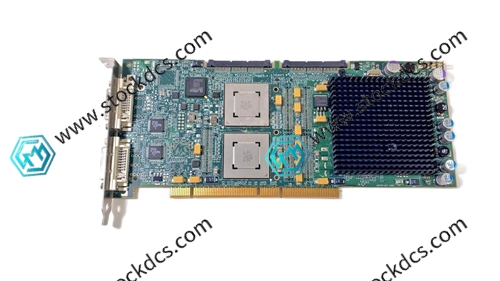

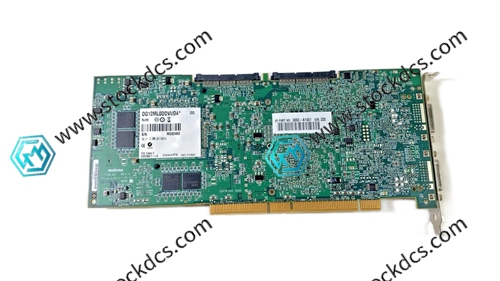

Product imag
