 Introduction

DSH-16016-MFIF Controller

DSH-16016-MFIF is an industrial stepper drive controller suitable for positioning control of stepper motors in automation equipment.

1. DSH-16016-MFIF supports multi level subdivision adjustment and high positioning accuracy

2. The output current is stable, and the motor has low low-speed vibration and noise

3. Equipped with MF motor enable signal interface, convenient start stop control

4. Optocoupler isolated pulse input, resistant to workshop electromagnetic interference

5. Maximum 200kHz pulse frequency, suitable for high-speed motion conditions

6. Quick setting of current and subdivision parameters using dip switch

7. Static automatic half current, reducing motor heating power consumption

8. Built in multiple protections for overcurrent, overheating, and short circuit

9. DC18-36V wide DC power supply, compatible with industrial control power supply

10. Dual indicator lights for power and fault, providing intuitive and easy troubleshooting for faults

11. Compact size, standard cabinet installation does not take up space

12. Supports two-phase four wire stepper motors with strong versatility

13. Long term continuous stable operation, suitable for mass production lines

14. Low signal transmission loss, no step loss during long-distance wiring operation

15. Simple structure, easy and fast disassembly, maintenance, and replacement

In summary, the DSH-16016-MFIF controller has convenient adjustment, comprehensive protection, and stable operation, making it a dedicated core spare part for small automation equipment stepper drives.

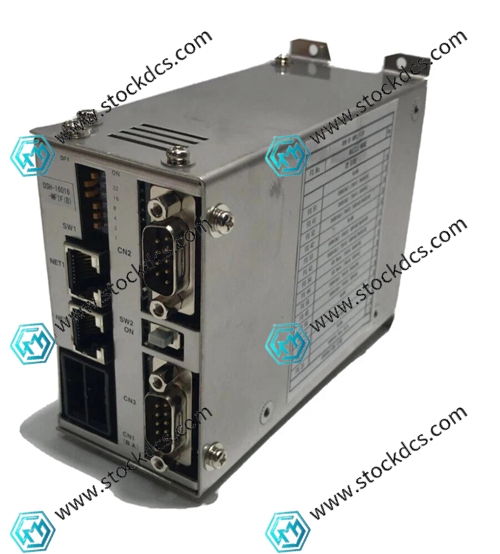

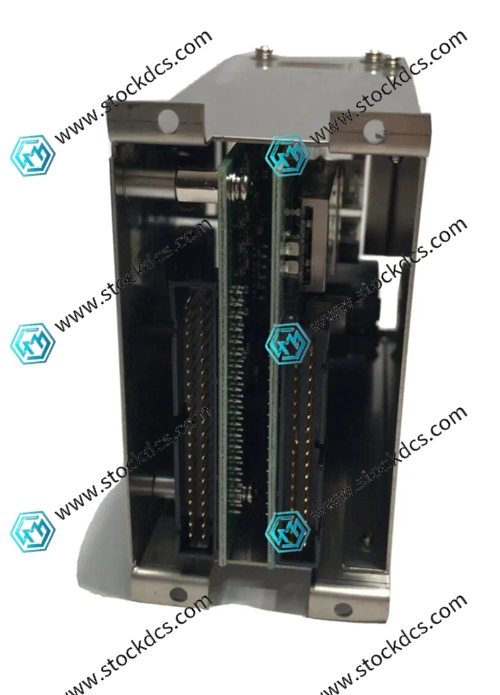

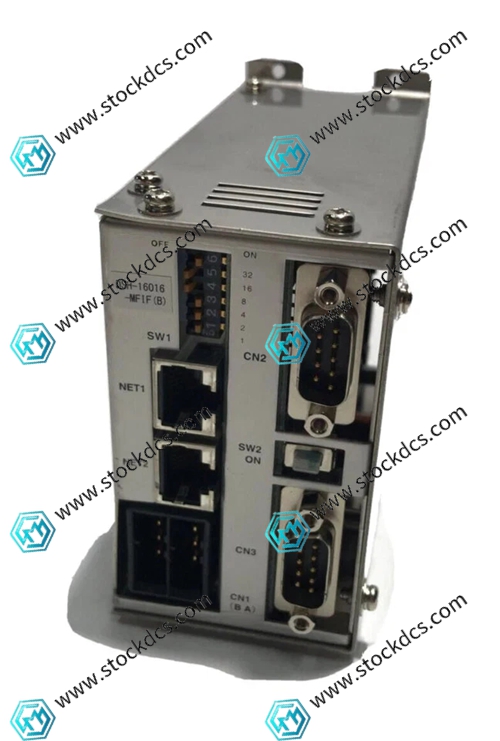

Product imag
