AMAT 70512527 Printed Circuit Board

AMAT 70512527 Printed Circuit Board

 Introduction

AMAT 70512527 Printed Circuit Board Product Features

AMAT 70512527 adopts multi-layer precision circuit design, suitable for multi-channel process signal transmission of semiconductor equipment

Sinking gold pad technology, strong antioxidant capacity, stable contact during long-term use in clean workshops

High TG high-temperature resistant substrate, resistant to cold and hot cycles in the cavity, and the board is not easily delaminated or cracked

The whole board is sprayed with a three proof coating, which is moisture-proof, dustproof, and resistant to trace process corrosive gases

Independent optocoupler isolation circuit to isolate electromagnetic interference caused by radio frequency and motor

Standard slot style version, directly inserted into the equipment backplane, can be disassembled and replaced without the need for a complete power outage

High precision positioning holes and interface pads, with high compatibility with the original factory, can be replaced without changing the wiring

Integrate multiple analog and digital signal channels to interface with various temperature and pressure sensors

Built in static and overcurrent protection circuits to reduce the probability of component breakdown failure

Compact narrow board layout, suitable for high-density multi board stacking installation in cabinets

Original factory standardized impedance wiring, low signal transmission loss, precise process acquisition

Welding point reinforcement treatment, less prone to virtual soldering and circuit breaking under vibration conditions in the equipment cavity

Wide temperature working range, constant temperature clean room can operate continuously and stably for 24 hours

Compatible with AMAT native bus, directly connected to the main control without the need for adapter accessories

Reserve multiple testing probe points for higher efficiency in repairing and troubleshooting circuit faults

AMAT 70512527 printed circuit board is a specialized board for application material etching and deposition equipment, with stable signal transmission and simple and reliable replacement and maintenance

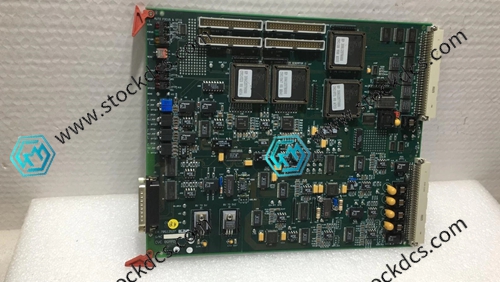

Product imag
