TEL 5880-000064-V1 DC power supply assembly

TEL 5880-000064-V1 DC power supply assembly

 Introduction

TEL 5880-000064-V1 DC power supply assembly

Suitable for TEL etching and thin-film semiconductor equipment cavity power supply

Multi channel DC stabilized output with low ripple, ensuring stable sensing signals

Built in soft start, precise board for suppressing power surge protection

Multiple power-off protection against overvoltage, overcurrent, short circuit, and overheating

All metal shielding to resist radio frequency plasma electromagnetic interference

Low exhaust clean components, suitable for dust-free wafer workshops

Real time voltage and temperature feedback, fault signal uploaded to the main control

Independent branch design, single path failure does not result in complete machine shutdown

Optimized heat dissipation structure, controllable temperature rise for long periods of full load

Gold finger direct insertion module, easy to disassemble and replace

Wide temperature substrate, stable high and low temperature performance around the cavity

Strengthen PCB solder joints to prevent virtual soldering under vibration conditions

Clear screen printing points for quick troubleshooting and fault location

Original factory power on aging detection, directly compatible with the same model

Integrated compact structure, suitable for narrow installation positions of equipment

TEL 5880-000064-V1 DC power supply assembly provides pure and reliable power supply, and is a specialized power supply spare part for semiconductor process chambers

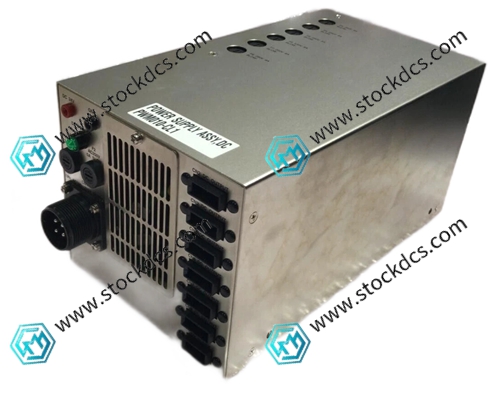

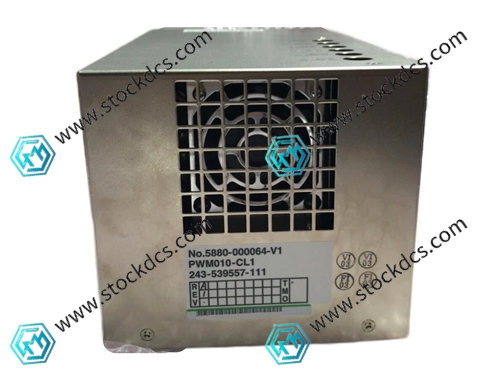

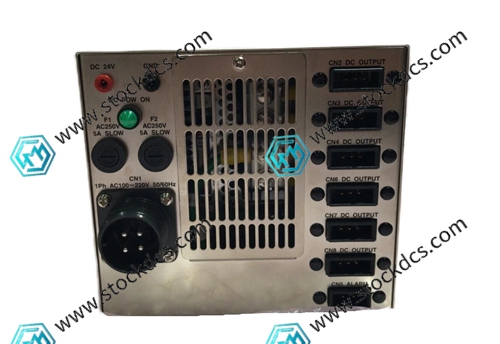

Product imag
