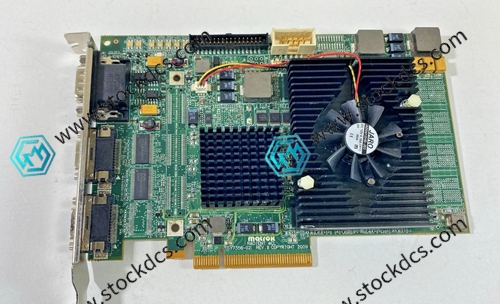

MATROX MX31870 Communication Module

MATROX MX31870 Communication Module

 Introduction

MATROX MX31870 Communication Module

Adapt to Maichuang machine vision image system to achieve high-speed data exchange between industrial control host and camera

PCIe standard onboard slot, directly inserted into device motherboard, easy to install and replace

Low latency data transmission architecture, synchronized output of image signals without image dragging or buffering

Dual independent communication channels, capable of simultaneously connecting multiple sets of industrial visual acquisition devices

Built in hardware error correction algorithm, automatic packet loss repair, high data integrity

Metal shielding plate body, resistant to electromagnetic interference from workshop frequency converters and RF equipment

Compatible with Camera Link, Gigabit Ethernet, and various visual communication protocols, suitable for multiple cameras

Onboard cache storage, temporarily caching image data to reduce host computational load

Wide temperature industrial components, stable and uninterrupted operation of high and low temperature conditions in dust-free workshops

Integrated overcurrent and electrostatic protection circuits to prevent electrostatic breakdown of internal communication chips

Equipped with official debugging software, real-time viewing of communication speed and fault alarm information

Lightweight and compact board, does not occupy too much internal space in equipment cabinets

Support parallel expansion of multiple MATROX MX31870 modules and expansion of visual acquisition channels

Reinforce solder joints and PCB substrates to prevent communication disconnection in equipment vibration environments

Original factory whole machine aging detection, semiconductor and testing equipment are directly compatible with the same model

The MATROX MX31870 communication module has stable transmission and low latency, making it a spare part for specialized data communication boards in industrial machine vision inspection equipment
