TEL 3381-000136-15 Interface Module

TEL 3381-000136-15 Interface Module

 Introduction

TEL 3381-000136-15 Interface Module Product Features

TEL original factory matching board, suitable for coating and developing semiconductor equipment main control cabinet backboard

Integrate multiple DI/DO and analog channels to collect signals from cavity sensors and valves

Optocoupler electrical isolation circuit, isolating clean workshop RF electromagnetic interference

Multi layer shielded PCB wiring reduces channel signal crosstalk and ensures distortion free transmission

Integrated triple hardware protection against overvoltage, short circuit, and static electricity to prevent board burnout

Onboard multiple sets of status indicator lights, quickly locate abnormal channels and circuit faults

Support bidirectional real-time communication between the main control and the cavity, synchronizing process timing signals

Built in data verification mechanism ensures that process parameters such as flow rate and vacuum are not lost

Industrial grade high-temperature resistant components, with a continuous and stable operation in a dust-free workshop 24/7

Plug in standard board structure, disassembly and replacement do not require dismantling the entire machine cavity

Three proof insulation coating treatment, suitable for constant temperature and low dust semiconductor production environment

Specialized locking connector, earthquake resistant and anti shake, stable signal connection without looseness

Native compatible device bus protocol, compatible with factory MES control system

Compact board size, suitable for narrow installation space of equipment control box

Factory full channel signal calibration, high consistency of replacement parameters for the same model

The TEL 3381-000136-15 interface module is a dedicated I/O signal adapter board for wafer coating and development equipment, with strong anti-interference ability and easy maintenance of the production line.

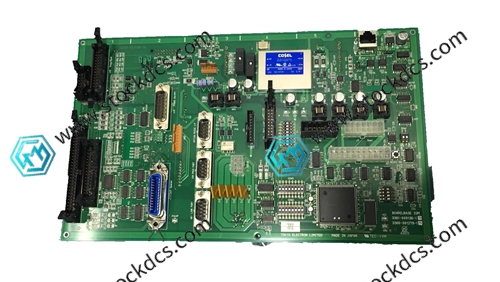

Product imag
