EKF CD3-99-JIVE Communication Module

EKF CD3-99-JIVE Communication Module

 Introduction

EKF CD3-99-JIVE Communication Module Product Features

6U standard CompactPCI card specification, compatible with industrial standard cabinets

Equipped with three independent gigabit Ethernet ports, supporting PICMG2.16 industrial real-time communication

Equipped with 8 USB 2.0 high-speed interfaces and strong external expansion capabilities

Dual DVI independent display output, can synchronize with external dual display screens

Built in PCIe bus architecture, high data transmission bandwidth and low latency

Onboard CompactFlash storage slot for stable local data storage

Reserved PMC expansion slot, capable of adding various communication submodule expansion functions

Low power processor solution for long-term continuous operation with lower heat generation

Support supporting rear I/O adapter board to simplify internal wiring of the cabinet

Industrial wide temperature working design, uninterrupted communication under high and low temperature conditions

Multiple hardware signal protection to resist electromagnetic interference in the workshop

Support multi system industrial networking, good compatibility of device data interoperability

Onboard fault status indicator light, quick troubleshooting for communication abnormalities

Reinforced component technology ensures stable operation in vibration equipment scenarios

Support customized firmware adaptation, suitable for semiconductor and industrial control testing equipment

The EKF CD3-99-JIVE communication module integrates communication, storage, and display functions, and is a core communication board for industrial compact industrial control systems.

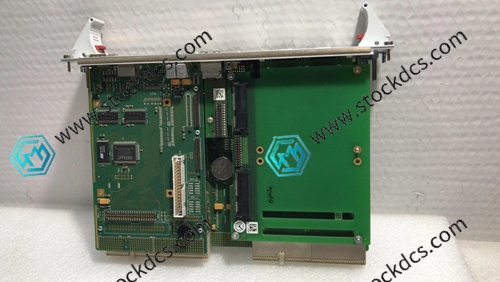

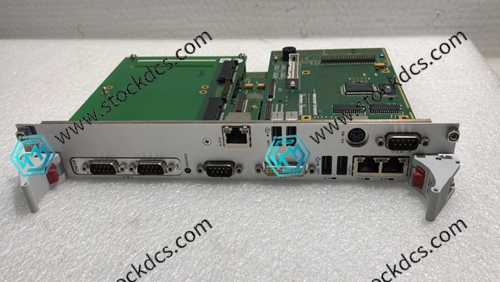

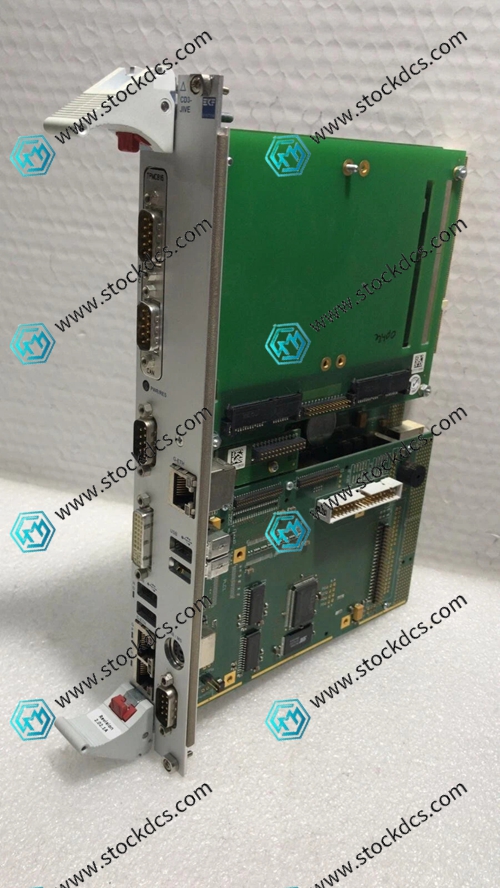

Product imag
