TEL 5880-000057-V1 Printed Circuit Board Module

TEL 5880-000057-V1 Printed Circuit Board Module

 Introduction

TEL 5880-000057-V1 Printed Circuit Board Module Product Features

TEL 5880-000057-V1 is a distributed signal transfer PCB board specifically designed for Tokyo Electronic Semiconductor Equipment, responsible for the distribution of multiple signals and power supply for the entire machine.

Multi layer high-precision circuit design, unified impedance control, high-speed signal transmission without distortion

Partition strong and weak electrical wiring, isolate RF interference, adapt to complex electromagnetic environments of etching equipment

High density and multi specification slots, compatible with various external boards for IO, communication, and power docking

Gold plated connector pads, wear-resistant and anti-oxidation, maintain stable conductivity after long-term insertion and removal

Onboard basic protection circuit with overcurrent and surge suppression to protect backend components

Dual port integrated design, capable of synchronously completing device bus data exchange and transmission

Original factory clean process production, dust-free board surface, suitable for use in dust-free wafer workshops

Full point factory on/off testing to screen out potential hazards such as short circuits and open circuits in advance

Thickened and reinforced solder pads, able to withstand long-term start stop vibrations of the machine, and less prone to solder failure

Standardized positioning holes can be directly matched with equipment racks for fixed installation

Reserve expansion solder joints and install small signal auxiliary components as needed

Corrosion resistant solder mask coating, resistant to trace process chemical volatile gases in the workshop

Multiple independent power supply circuits, single channel faults do not affect the rest of the board's circuits

Equipped with original factory firmware for the entire machine, there are no compatibility errors in communication docking, and debugging is simple

Standard split assembly, separate disassembly and maintenance without the need for complete machine shutdown

TEL 5880-000057-V1 is the core signal distribution carrier board for semiconductor process equipment, ensuring stable communication and power supply for all modules of the machine.

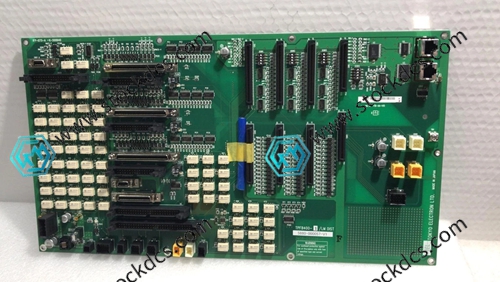

Product imag
