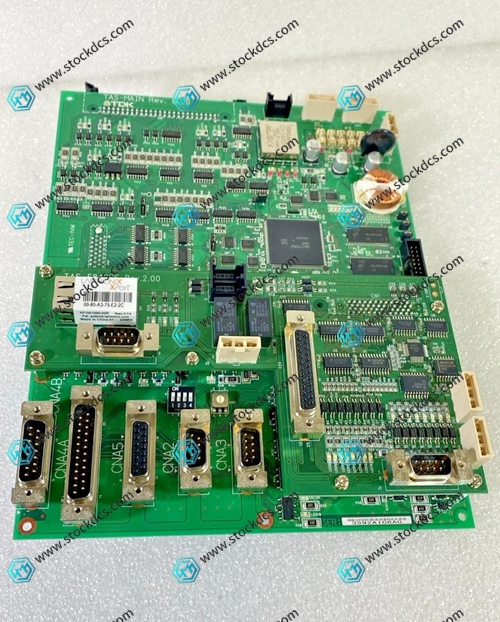

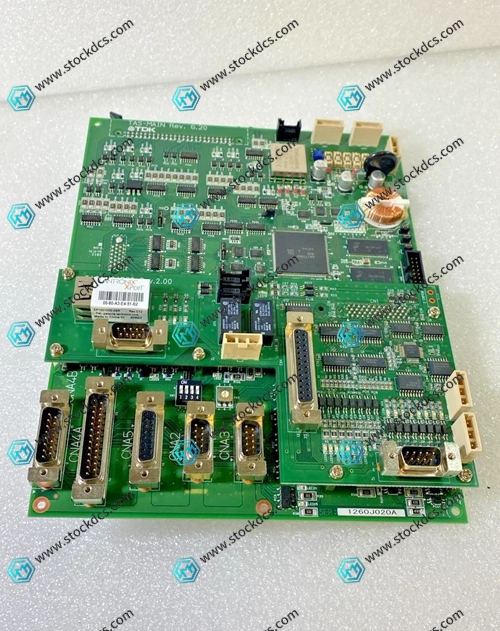

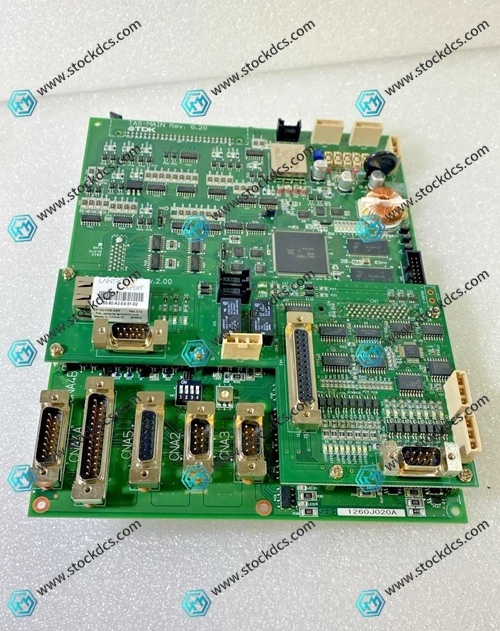

TDK TAS-E84RSE Control Board

TDK TAS-E84RSE Control Board

Product Details Introduction

TDK TAS-E84RSE Control Board

TDK TAS-E84RSE is compatible with 300mm wafer carrier main control driver

Multiple IO channels, coordinating vacuum and sensor signal acquisition

Built in EMC filter to resist electromagnetic interference in the workshop

High speed signal transmission, rapid response of equipment actions

Real time vacuum pressure monitoring, automatic alarm for missing pieces

Dust free board process, suitable for use in clean workshops

Standard plug-in card structure, easy to disassemble and replace

Wide voltage adaptation, stable operation with small power supply fluctuations

Integrated motion timing control, precise coordination of robotic arms

Built in fault self check, quick identification of channel abnormalities

Onboard storage chip, operating parameters are not easily lost

Optimize the heat dissipation circuit for long-term continuous operation

Compatible with the entire control system of TAS carriers in the same series

Factory pre calibration, less on-site debugging workload

Compact board size, saving internal space of equipment

Overall, the TDK TAS-E84RSE control board is stable and easy to maintain, making it the core control board for semiconductor wafer transfer equipment
