Genmark Logosol LS-421-2183E Interface Module

Genmark Logosol LS-421-2183E Interface Module

Product Details Introduction

Genmark Logosol LS-421-2183E Interface Module

Genmark Logosol LS-421-2183E is a dedicated signal transfer interface board for semiconductor wafer robotic arms, which enables data exchange between robot control and pre alignment, vacuum sensing, and stage mechanisms.

Original factory matched Genmark series wafer transfer robotic arm, direct insertion installation does not require wire modification and adaptation

Multi channel differential signal channel, stable transmission of servo position and vacuum pressure detection signals

Channel independent optoelectronic isolation to isolate electromagnetic interference from RF cavities and avoid signal distortion

Built in hardware filtering circuit to filter out noise pulses generated by motor start stop

Multi layer circuit protection against overcurrent, short circuit, and electrostatic impact to protect the main control board

Partition status indicator light, quick identification of communication failure and sensor disconnection faults

Integrated digital input and output points, linked with vacuum valves and wafer detection sensors

Onboard storage unit, storing the communication protocol configuration of the robotic arm without losing power-off parameters

Standard gold finger slot structure, modular disassembly and assembly, time-saving and convenient maintenance and replacement

Industrial gold-plated PCB circuit, with lower oxidation resistance and signal transmission loss

Strengthening the routing of solder pads and reducing the risk of virtual soldering and detachment under reciprocating vibration conditions of the robotic arm

Low latency signal interaction, rapid response of robotic arm for picking up and placing pieces and positioning instructions

Compatible with Logosol's full range of pre aligned devices for collaborative communication, with high signal compatibility

Clean grade board material, suitable for constant temperature and humidity production environment in dust-free workshops

Complete full channel signal calibration at the factory, and can be directly connected to a robotic arm for mass production on the machine

The Genmark Logosol LS-421-2183E interface module is a critical intermediate spare part for wafer handling systems, ensuring stable linkage and precise positioning of various sub components of the robotic arm.

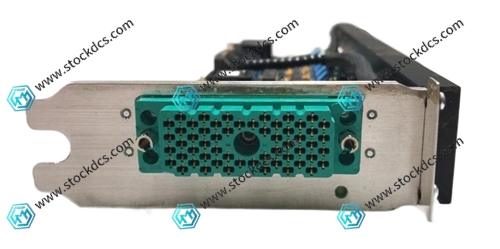

Product imag
