TEL PDS-BX02S1421 Printed Circuit Board

TEL PDS-BX02S1421 Printed Circuit Board

Product Details Introduction

TEL PDS-BX02S1421 Printed Circuit Board

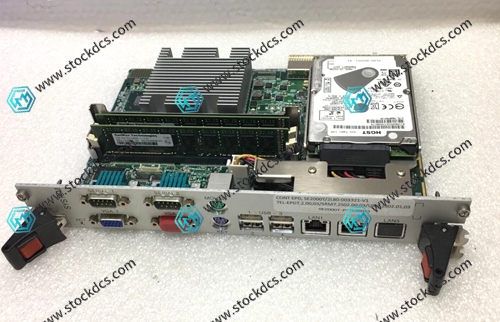

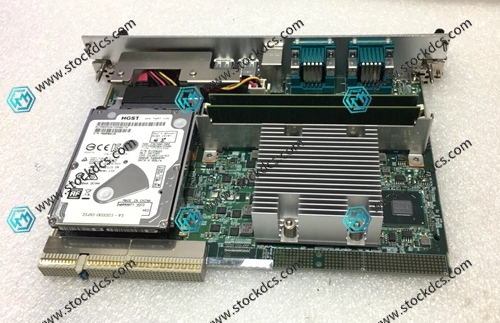

Introduction: TEL PDS-BX02S1421 is a dedicated main control PCB board for Tokyo electronic semiconductor equipment, compatible with etching machines, stable circuits, and clean processes.

High density multi-layer wiring, integrated control and signal transmission lines

Precise impedance routing, interference free high-speed signal transmission

Thickened copper foil circuit, less likely to generate heat for high current loads

Three proof coating on the entire board, moisture-proof, dustproof, and corrosion-resistant

Standardized board size, direct insertion and replacement of machine slots

Reserve multiple sets of testing points for convenient fault detection

Metallized high reliability via, stable interlayer connection

High temperature resistant substrate, equipment operates for a long time without deformation

Clear silk screen component labeling, easy maintenance and replacement

Low particle production process, suitable for dust-free wafer workshops

Anti electromagnetic interference design, multiple boards in the same frame do not affect each other

Multiple circuit protection, short circuit and overload are not easy to burn the board

Original factory standard interface, perfectly matched with SE2000 series machines

The welding points are firm and resistant to seismic and production line vibration environments

Factory full function power on testing with high consistency

Conclusion: TEL PDS-BX02S1421 is durable and easy to replace, and is the core supporting circuit board for TEL semiconductor etching equipment.
