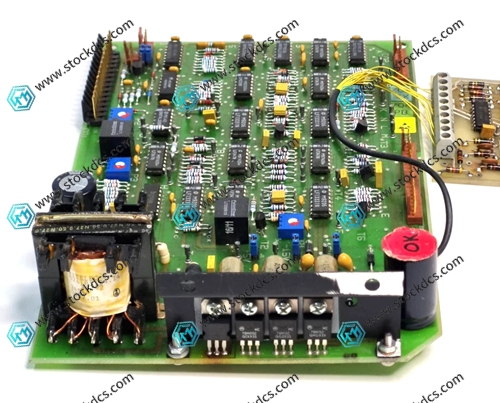

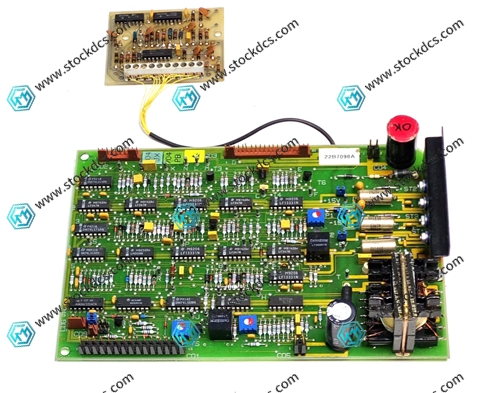

BOBST 704-1091-03 W/22-B-7020 Control Card

BOBST 704-1091-03 W/22-B-7020 Control Card

Product Details Introduction

BOBST 704-1091-03 W/22-B-7020 Control Card

Introduction: BOBST 704-1091-03 W/22-B-7020 is a dedicated main control card for Bosch equipment, which controls the transmission of signals and action scheduling of the entire machine.

1. Multi channel signal acquisition port, compatible with various sensing components

2. BOBST 704-1091-03 integrated bus circuit, realizing data interconnection between boards

3. Onboard hardware overcurrent protection, power supply protection board is cut off in case of short circuit

4. PCB triple anti coating, dustproof and moisture-proof, suitable for printing workshop environment

5. Gold plated plug-in terminals, with stable contact and fewer faults after repeated insertion and removal

6. Partition wiring structure reduces electromagnetic interference and ensures smooth signal transmission

7. Industrial chip configuration, sustainable long-term operation in a wide temperature environment

8. Equipped with a fault indicator light, quick visual inspection of abnormal points

9. Original card slot specifications, cabinet slot can be directly installed in place without changing the wiring

10. Built in parameter storage unit, retaining device operation process data

11. Multi channel switch output, driving the action of solenoid valves and executing components

12. Seismic resistant board technology to cope with equipment start stop vibration conditions

13. Compatible with the same series of supporting substrates, with strong universality for spare parts replacement

14. Low power circuit design, reasonable temperature rise control for continuous operation

15. W/22-B-7020 matching configuration, matched with original electronic control program parameters

Conclusion: BOBST 704-1091-03 W/22-B-7020 is suitable for Bosch die-cutting and box pasting equipment and is a key component of the unit's electrical control.
