Ansaldo BMB 5'504'0 Printed Circuit Board

Ansaldo BMB 5'504'0 Printed Circuit Board

Product Details Introduction

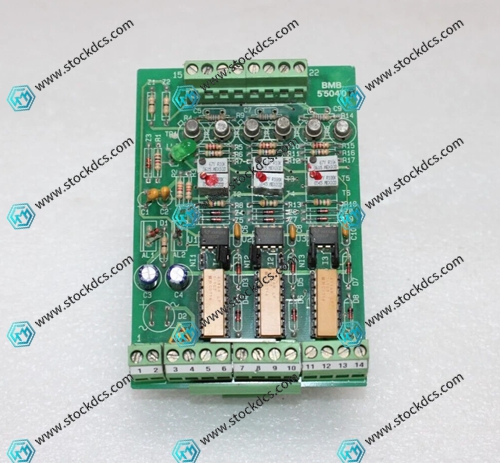

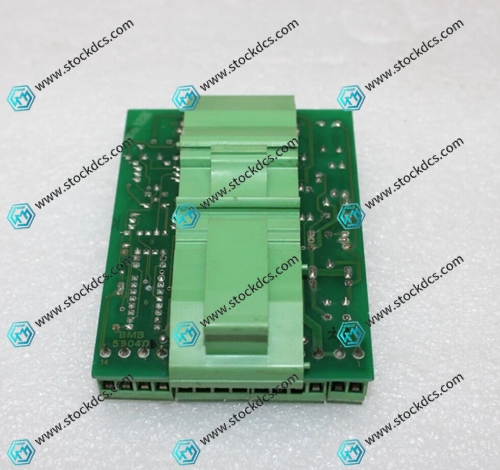

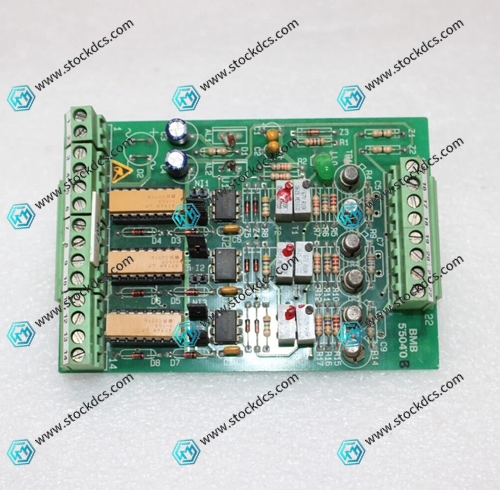

Ansaldo BMB 5'504'0 is a specialized power/driver printed circuit board for Ansaldo transmission/excitation systems, commonly used in DC speed control devices, responsible for power drive and signal conditioning.

Industrial grade FR-4 substrate, high insulation and high heat resistance

Double layer/four layer precision wiring, precise impedance control

Thick copper foil (2oz), high current carrying capacity and low heat generation

Immersion gold/tin lead process, excellent oxidation resistance and weldability

Compliant with IPC-6012, UL94 V0 flame retardant rating

Wide temperature range: -25 ℃ to+75 ℃

Integrated power management, overvoltage/overcurrent/reverse protection

Power circuit optimization, low loss, high stability

Onboard filtering and buffering, strong anti-interference capability

Original hole position and positioning, plug-in installation

Three proof coating (moisture-proof/dustproof/anti-corrosion)

Compatible with Ansaldo BMB series rack

Status LED indication, intuitive and easy to detect faults

100% aging and functional testing at the factory

Original compatible replacement, compatible with version 5'504'0

Product imag
