JANCD-MCP02B-1 Control Circuit Board

JANCD-MCP02B-1 Control Circuit Board

Product Details Introduction

JANCD-MCP02B-1 is the main CPU control board (part number: DF9201890-A0N) of the Yaskawa Motoman MRC robot control system.

Compatible with Yaskawa MRC series robot controllers (such as SK series), serving as the core computing unit of the system.

Core functions: Execute robot motion programs, multi axis servo control, I/O management, and system communication.

Supports up to 21 axis control and dual robot synchronous control, suitable for complex linkage scenarios.

Onboard memory: Basic 2200 point programming, expandable to 60000 points.

Standard 48 point I/O, expandable to 144 points, meeting the interaction needs of external devices.

Integrated JANCD-MM04 memory card (DF9200722-C2N), supporting program and parameter power-off maintenance.

Industrial grade PCB and components, suitable for workshop vibration and dust environment.

The working temperature is 0-55 ℃, and the humidity is 5-95% RH (without condensation).

Special slot installation, compatible with MRC control cabinet rack.

Equipped with status LED and diagnostic interface for easy troubleshooting.

Support advanced sports functions such as multitasking, Servofloot, S-move, etc.

Support PC offline programming and program upload and download.

Power supply DC24V, power consumption ≤ 28W.

The size and weight comply with the MRC controller standard installation specifications.

Applied to Yaskawa MRC series industrial robots for welding, assembly, and handling.

JANCD-MCP02B-1 is the control center of the MRC robot system, ensuring high-precision motion and stable operation.

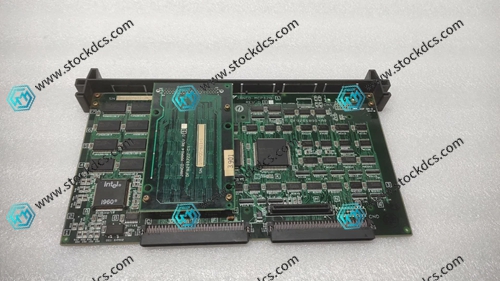

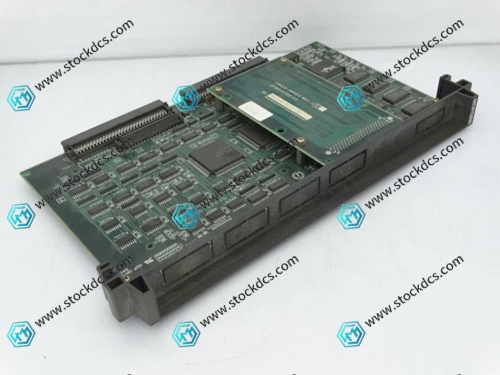

Product imag
