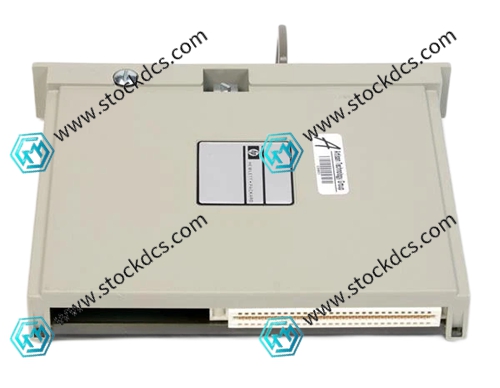

HP 44727A Analog Output Module

HP 44727A is a 4-channel DAC analog output module compatible with HP 3852A/3853A data acquisition systems, supporting flexible voltage/current configuration and remote sensing, with excellent accuracy and stability.

4-channel independent DAC analog output, supporting voltage and current dual-mode.

Single channel can be configured as unipolar/bipolar voltage or unipolar current through jumper wires.

Voltage range: 0 to+10.235 V, -10.235 to+10.235 V.

Supports maximum ± 20 mA current output and is compatible with industrial control signals.

Each channel has remote sensing function to ensure the accuracy of the test point output.

The channel can float to a peak voltage of 170 V and has strong resistance to common mode interference.

The protection voltage between channels or channels to the casing reaches a peak of 120 V DC/170 V.

The load adjustment rate is less than 0.6 mV, and the output stability is excellent.

The output ripple and noise are less than 2.5 mVrms, and the signal is pure.

The maximum allowable IR voltage drop for the source lead is less than 1.5 V, suitable for long-distance connections.

Built in error amplification, sensor amplification, and output buffering for easy calibration.

Adopting a design that separates components from terminal modules, maintenance and calibration are flexible.

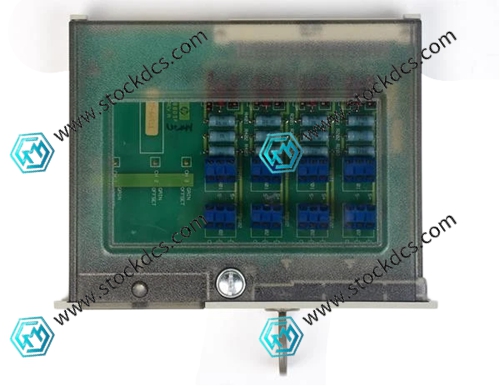

The terminal module is equipped with jumpers and calibration resistors, making on-site configuration convenient.

Supports up to 16 AWG cable connections to meet industrial cabling requirements.

Compatible with HP 3852A/3853A host slots, plug and play.

HP 44727A is a high-precision and highly reliable 4-channel DAC analog output module, suitable for analog signal generation scenarios in automation testing, industrial control, and data acquisition systems.
