IC693CHS398 slot expansion base

IC693CHS398 slot expansion base

Product Details Introduction

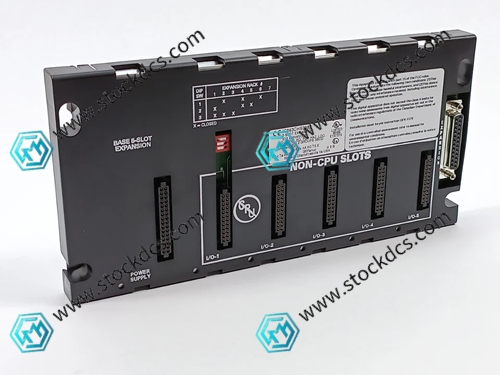

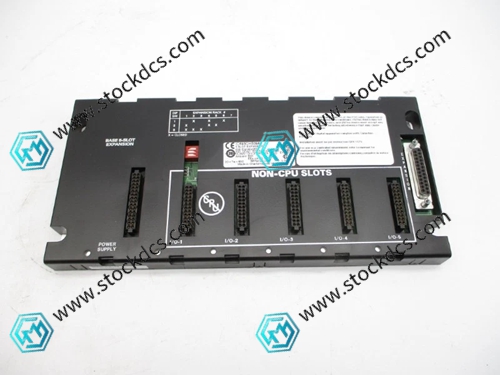

IC693CHS398 is a 5-slot expansion base for GE Fanuc Series 90-30 PLC, used to expand system I/O capacity. It needs to be used in series with the CPU motherboard and cannot run independently. It is suitable for industrial automation scenarios that require adding I/O points or expanding option modules.

Provide 5 available slots, with a dedicated power slot on the left (only compatible with power modules). Slot 1 is dedicated to CPU or FIP remote I/O scanning modules, while Slot 2 and above support I/O or option modules.

The right side is equipped with a 25 pin D-type female expansion connector for cascading more expansion/remote bases, achieving linear expansion of system capacity.

Built in 5VDC power supply, power consumption of 170mA, energy efficiency better than traditional models, single slot maximum current capacity of 3.4A, meeting the high load requirements of the module.

The maximum cascading distance of a single base is 15 meters (50 feet), and larger scale I/O systems can be constructed through cascading multiple bases.

Each remote base is equipped with a DIP dip switch for rack identification, which facilitates system recognition of multiple base topologies and simplifies configuration.

Installed using standard DIN rails, the structure is compact, with dimensions of approximately 265 × 130 × 142mm (10.43 × 5.12 × 5.59 inches) and a weight of approximately 1.12kg.

The working temperature ranges from 0 ° C to 60 ° C, with a voltage stability of ± 5%, suitable for industrial site environments, and has an IP20 protection level.

Differentiated slot size design to prevent incorrect insertion and ensure safe module installation and system stability.

Compatible with CPU 331, 340, 341, 350 and above models, the number of expansion bases supported by different CPUs varies (e.g. up to 4 for CPU 331/340/341 and up to 7 for CPU 350 and above).

Supports CE, UL, RoHS certification, complies with international industrial standards, and is suitable for harsh environmental applications.

Internal bus and signal circuit optimization to improve data transmission efficiency and reduce CPU resource usage.

It needs to be connected to the CPU motherboard through a dedicated expansion cable, with standardized installation and wiring, and easy maintenance.

Can be paired with IC693PWR series power modules to provide stable power supply for the base and all slot modules.

Equipped with comprehensive anti-interference design, suitable for complex industrial sites with electromagnetic interference, ensuring reliable operation of the system.

Can be used in manufacturing, petrochemicals, water treatment, robot control, data acquisition systems, and other scenarios to expand system I/O capabilities.

ending

IC693CHS398, with its core features of flexible expansion, easy installation, and stable reliability, has become the standard choice for Series 90-30 PLC systems to expand I/O capacity, helping to build modular and scalable industrial automation control architectures.
