Product Details Introduction

IC670PBI001 is a Profibus DP bus interface unit of GE Fanuc Field Control series, mainly used to build distributed I/O networks and achieve stable and high-speed data transmission between controllers and field I/O modules.

Supports standard Profibus DP communication protocol and can be used as a slave to access mainstream PLC systems

The communication speed range is 9.6Kbps~12Mbps, which can be flexibly set according to on-site needs

Equipped with dual 9-pin D-Sub interfaces, used for bus connection and handheld programmer debugging respectively

A single module can expand and connect up to 8 Field Control series I/O modules

Using 18~30VDC external power supply, typically 24VDC industrial power supply is used

Can provide a maximum logic bus power supply of 1.4A for backend I/O modules

Set bus address through DIP dip switch, simple and intuitive configuration

Equipped with PWR, RUN, and OK status indicator lights for easy viewing of operational and fault status

Built in 1A replaceable slow melting fuse, providing overcurrent protection for power input

Bus and internal circuit are optically isolated, effectively enhancing anti-interference capability

Equipped with non-volatile parameter storage, configuration information will not be lost after power failure

The working temperature range is suitable for most industrial site environments and has strong stability

Supports standard DIN rail installation, compact structure for easy cabinet layout

Equipped with comprehensive diagnostic functions, capable of monitoring network, I/O, and power status

Industrial grade high reliability design, suitable for long-term continuous operation

ending

IC670PBI001, as the core interface component of distributed I/O systems, has flexible expansion and stable communication, and is a commonly used reliable bus unit in automation production lines and equipment control systems.

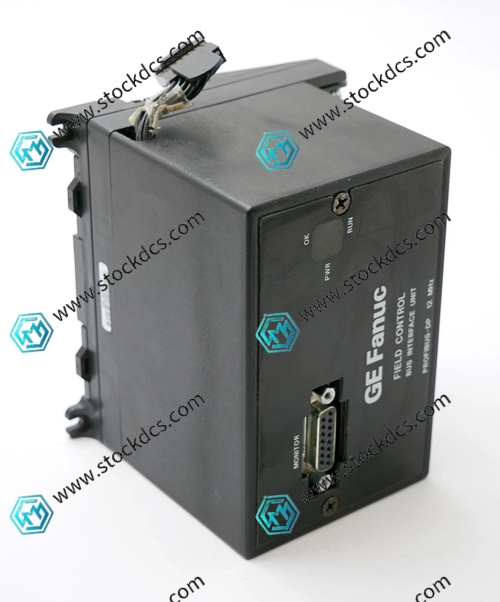

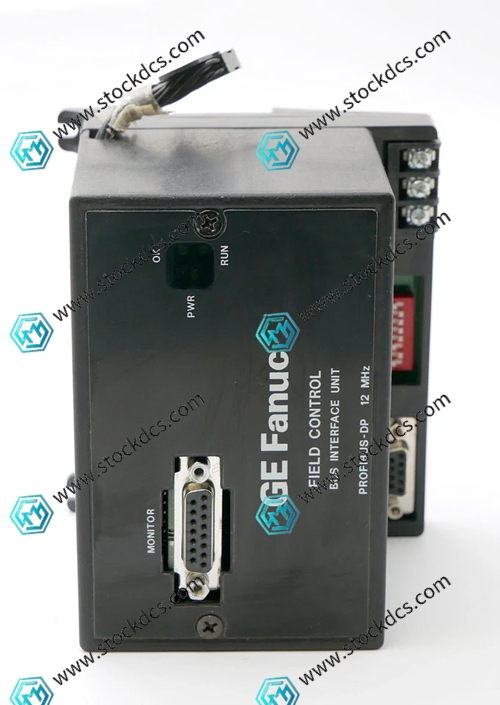

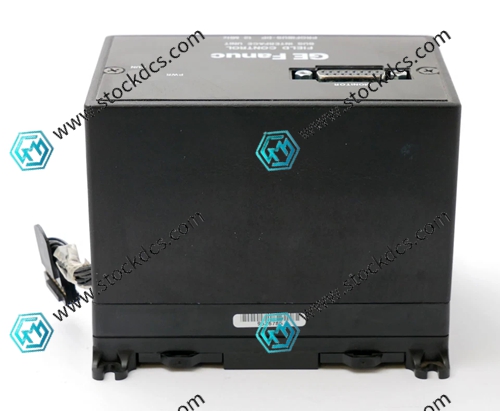

 Product imag
