3300/16-14-01-03-00-00-01 Dual Vibration Monitor

3300/16-14-01-03-00-00-01 Dual Vibration Monitor

Product Details Introduction

3300/16-14-01-03-00-00-01 is a dual channel vibration monitor from Bentley 3300 series, mainly used for online monitoring of vibration and shaft displacement of rotating machinery, providing real-time protection for equipment safety operation.

Belonging to the Bentley 3300 monitoring system, it is a dual channel vibration monitoring module.

It can simultaneously monitor two vibration or shaft displacement signals, adapting to the monitoring needs of rotating machinery.

Compatible with eddy current sensor signal input and compatible with commonly used probes in industrial fields.

Having a wide frequency response range to meet the vibration monitoring requirements of different devices.

High measurement accuracy and good linearity ensure stable and reliable monitoring data.

Support multi-level alarm settings, which can achieve warning and danger protection functions.

Provide standard analog output for easy integration into DCS or PLC systems.

Equipped with sensor fault detection function, it can identify abnormalities such as wire breakage and short circuit.

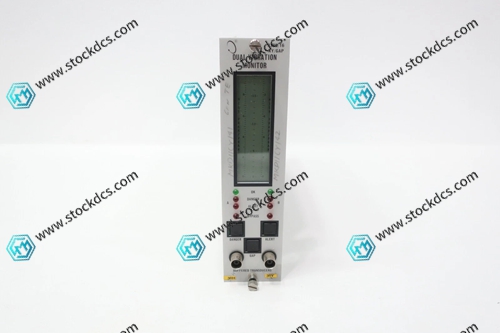

The front panel is equipped with status indicator lights, which intuitively display the operation and alarm status.

Adopting a modular card rail design, installation and replacement are convenient.

Unified power supply from the system rack, without the need for a separate external power supply.

Industrial grade design, adaptable to complex working environments, and stable long-term operation.

Equipped with signal buffering output, it can be used for on-site debugging and data analysis.

Suitable for large rotating equipment such as steam turbines, compressors, motors, pumps, etc.

Commonly used for equipment status monitoring, fault warning, and safety protection systems.

The 3300/16-14-01-03-00-00-01 dual channel vibration monitor is widely used in online monitoring of industrial rotating machinery due to its stable and reliable monitoring performance, comprehensive protection functions, and good system compatibility, effectively ensuring the safe and stable operation of key equipment.

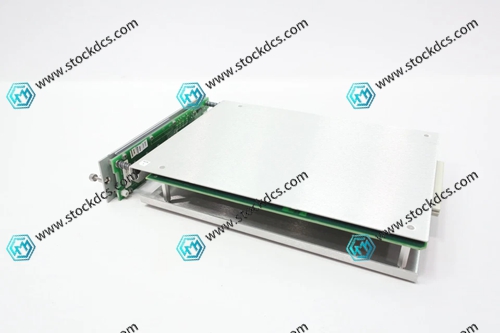

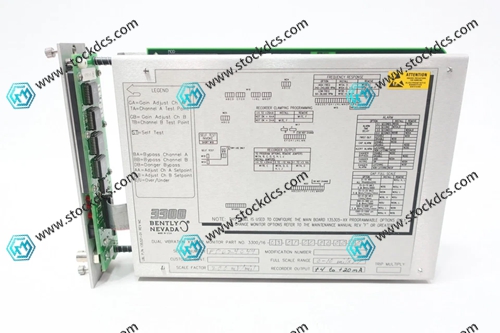

 Product imag
