DSQC202 YB560103-AC/8 Single Board Computer

DSQC202 YB560103-AC/8 Single Board Computer

Product Details Introduction

ABB DSQC202 YB560103-AC/8 Single Board Computer

DSQC202 (YB560103-AC/8) is a specialized single board computer for ABB S4/S4C+robot systems, responsible for system computation, motion control, and communication management. It is the core of robot control.

Brand and model: ABB DSQC202, material number YB560103-AC/8, robot main computer board.

Adaptation system: ABB IRB 6400, IRB 2400 and other S4/S4C+controller platforms.

Core functions: system computation, motion planning, I/O management, communication scheduling.

Processor architecture: Embedded industrial grade processor that meets real-time control requirements.

Memory configuration: onboard SRAM/Flash, supporting program and parameter storage.

Communication interface: Built in RS232, DeviceNet/CANopen, communicate with the teaching pendant, I/O module, and upper computer.

Status indication: LED displays running, fault, and communication status.

Power supply: 24V DC, powered by the robot system backplane.

Size: Approximately 12.4 × 12.6 × 2.2 cm, compact design.

Weight: Approximately 0.1 kg, easy to install.

Working temperature: -10 ℃~+50 ℃, suitable for industrial sites.

Signal isolation: onboard isolation circuit to enhance anti-interference capability.

Self diagnosis: Real time hardware self check, quick fault location.

Application scenarios: Industrial robot systems for welding, handling, assembly, spraying, etc.

Spare parts attribute: S4C+system core spare parts, strong compatibility, easy to purchase.

DSQC202, with its stable, reliable, and real-time characteristics, has become the control core of ABB's classic robot system, ensuring efficient operation of automated production lines.

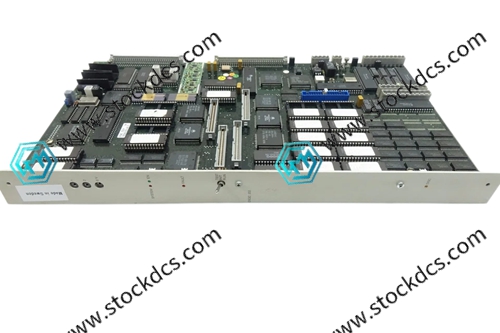

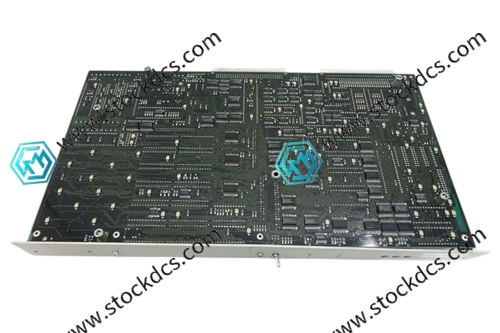

 Product imag
