TEL Tokyo Electron 1981-600515-13 Split Screen Display Module

TEL Tokyo Electron 1981-600515-13 Split Screen Display Module

Product Details Introduction

Product model: 1981-600515-13

Product Name: Split Screen Display Module

Manufacturer: Tokyo Electron Ltd. (TEL)

1、 Product Introduction:

The TEL 1981-600515-13 split screen display module is a graphical user interface (GUI) video output submodule used in TEL semiconductor equipment. Its main function is to integrate or separate multiple image signals, achieve multi screen display on a single screen, and be used for real-time monitoring of multiple processes or control views.

This module is commonly used for human-machine interface (HMI) terminals, console display systems, or engineering maintenance panels. It is an important interface component for operators to observe equipment status, alarm information, and process parameters in real time.

2、 Main functions:

Function Type Function Description

Integrate and receive multiple image/signal sources (such as cameras and control signals) for video input, and manage them uniformly

Split screen display control displays multiple images on one or more screens in a set proportion

Image switching output can achieve switching between signal sources and adjustment of primary/secondary display

The HMI interface supports visual display of process flow diagrams, parameter curves, alarm information, etc

Synchronous signal processing ensures synchronous output of multi-channel video signals, avoiding screen jumping or misalignment

3、 Applicable equipment scope:

This module may be installed in the following Tokyo Electron semiconductor devices:

Coater/Developer

Etcher equipment

Thin film deposition equipment (CVD, PVD)

Transport system or integration platform (EFEM, Load Port)

Overall control terminal or engineering workstation

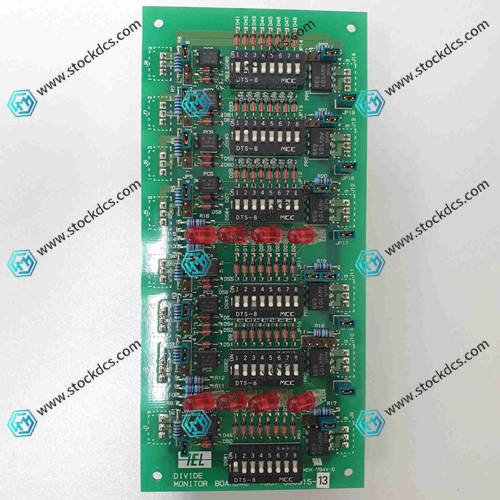

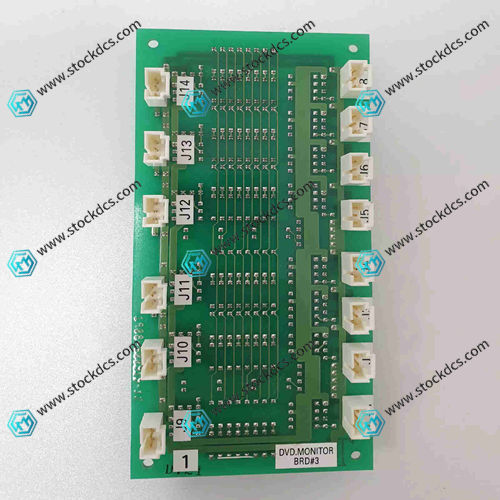

Product imag
