AMAT 0090-02287 Interface Module

AMAT 0090-02287 Interface Module

 Introduction

AMAT 0090-02287 Interface Module Product Features

AMAT 0090-02287 is compatible with AMAT deposition and etching semiconductor equipment, responsible for collecting and transmitting fault signals of lamp groups

Multi channel signal input points, synchronously collecting multiple sets of light source operation status signals

Onboard optocoupler isolation circuit, isolating cavity RF and motor electromagnetic interference

Original factory standard backplane slot structure, hot swappable replacement without the need for power outage of the entire machine

Three proof coating on the entire surface of the circuit board, moisture-proof, dustproof, and resistant to trace corrosive gases in the clean room

Integrated signal filtering circuit to filter out clutter and avoid false alarms of fault signals

Equipped with power, communication, and fault indicator lights, the operating status is clearly visible

Multiple electrical protections with overvoltage, overcurrent, static electricity, and short circuit protection functions

Compact PCB layout, dense cabinet layout does not occupy extra installation space

Welding point reinforcement process, able to withstand the reciprocating vibration of the equipment cavity, and less prone to virtual soldering and circuit breaking

Match the native bus protocol of the device, directly connect to the main control without the need for adapter accessories

Wide temperature working range, clean room constant temperature condition for long-term continuous and stable operation

Built in signal cache storage, retaining records of abnormal light sources for easy fault tracing

Reserved testing probe points for easy maintenance and troubleshooting of circuit faults

Low power circuit design, low temperature rise during long-term operation, and extended service life

The AMAT 0090-02287 interface module is a dedicated board for semiconductor equipment light source monitoring, with precise signal acquisition and convenient replacement and maintenance

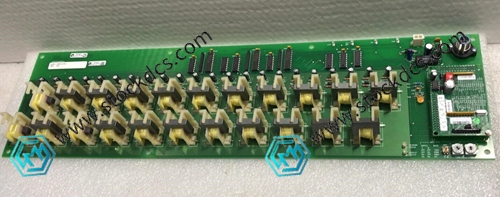

Product imag
