IC693MDL655K input relay

IC693MDL655K input relay

Product Details Introduction

Model: IC693MDL655K

Brand: GE Fanuc

Series: Series 90-30

Type: Digital Input Module (Relay Contact Type Input)

Technical parameters:

Input points: 16 points

Input type: Passive dry contact input (relay or mechanical switch closed)

Voltage range: 12-24 VDC (recommended 24V)

Current per point: approximately 7-10 mA

Input isolation: every 8 points is a set of photoelectric isolation

Response time: less than 10 milliseconds

Status indication: Each input point is equipped with LED indicator lights

Channel grouping: 2 groups, each with 8 points, sharing a common terminal (COM)

Installation method: Plug in, suitable for 90-30 rack slots

Wiring instructions:

One end of external signal devices (such as buttons, limit switches) is connected to an input point of the module.

Connect the other end to the positive pole of an external 24VDC power supply.

The negative pole of the external power supply is connected to the COM (common terminal) of the group.

The module does not supply power to the input device and requires an external DC power supply.

Precautions for use:

Only dry contact signals can be connected, and active signals with voltage cannot be connected, otherwise the module will be damaged.

The common terminal of two sets of input points cannot be mixed.

The input device must be closed in order to be recognized as a valid signal.

Not suitable for high-speed signal acquisition (such as encoder pulse input).

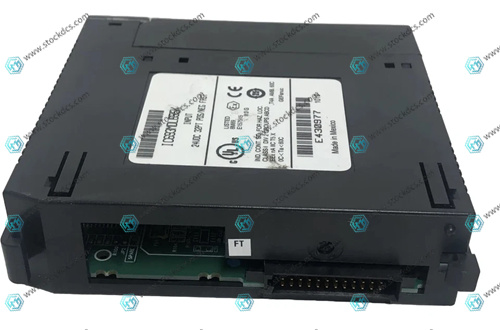

Product imag
