Matrix3 DSP (PO) GG0-3220 Digital Signal Processing Board

Matrix3 DSP (PO) GG0-3220 Digital Signal Processing Board

Product Introduction

Matrix3 DSP (PO) GG0-3220 Digital Signal Processing Board

Product Features

1. Equipped with a multi-core DSP computing architecture, it completes real-time processing of multi-channel acquisition signals at high speed.

2. Onboard high-capacity cache ensures continuous data stream processing and reduces data loss.

3. Integrate hardware signal filtering units to suppress electromagnetic interference in industrial environments and improve signal-to-noise ratio.

4. Standard backplane bus interface, stable communication with supporting equipment systems, and low data transmission latency.

5. Integrated modular design of the board, plug-in installation, convenient replacement and debugging of spare parts.

Product application areas

1. Real time processing unit for sensing signals of precision detection equipment

2. Multi channel data acquisition and operation board for semiconductor equipment

3. Non destructive testing ultrasonic signal analysis and waveform processing module

4. Laser detection equipment echo signal acquisition and analysis system

5. High speed dynamic signal acquisition and processing platform for scientific research instruments

6. Automation equipment vibration monitoring and spectrum analysis unit

7. Precision optical instrument image preprocessing operation board

8. Industrial online monitoring equipment signal analysis main control component

9. Matrix series equipment maintenance spare parts replacement project

10. Precision detection control system upgrade and renovation project

This board is a dedicated DSP signal processing spare for Matrix devices, responsible for the calculation, filtering, and analysis of raw sensing signals, ensuring stable and reliable signal processing for various precision detection equipment

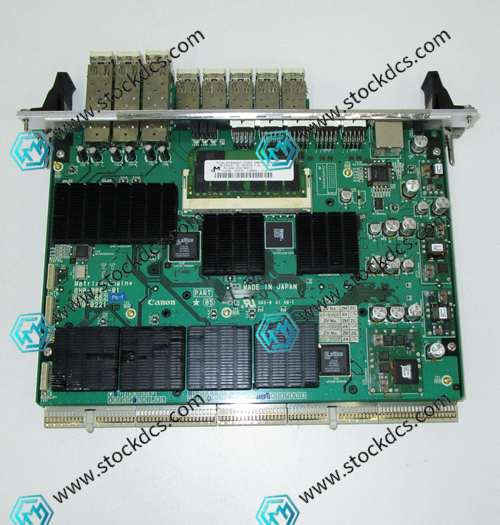

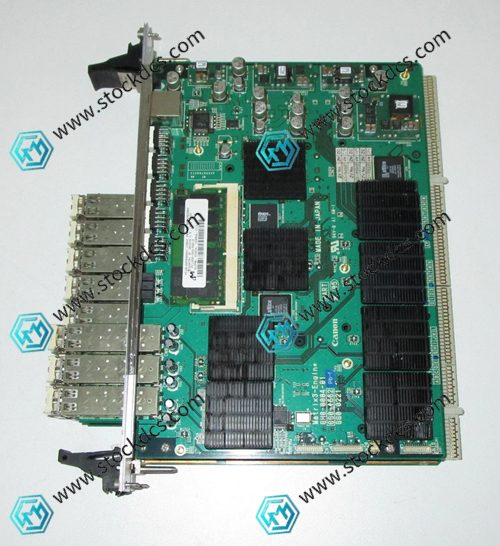

Product imag
