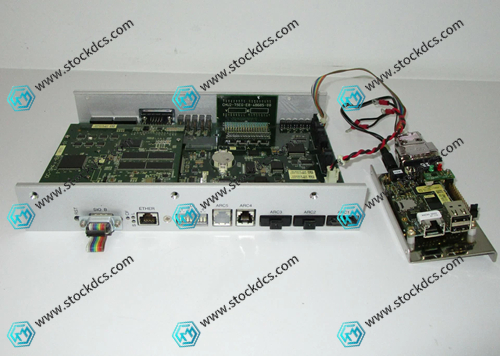

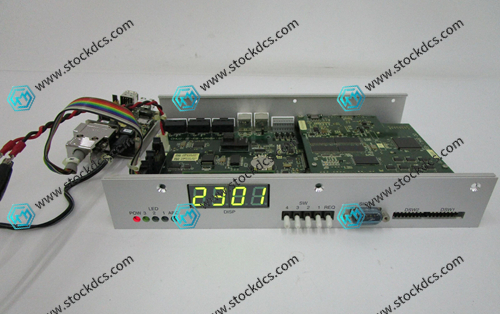

CHU2-IF-E8-48684-00 interface board

CHU2-IF-E8-48684-00 interface board

Product Introduction

CHU2-IF-E8-48684-00 interface board

Product Features

1. Dedicated IO signal adapter board for semiconductor equipment, with built-in optoelectronic isolation circuit, effectively suppressing signal interference and surge impact.

2. Multiple parallel signal channels enable high-speed instruction and sensor data exchange between the main control unit and the executing devices.

3. Standard card slot installation, onboard status indicator light, easy troubleshooting and spare parts replacement operation.

Application Fields

1. Control cabinet for semiconductor etching process equipment

2. Wafer processing chamber signal conversion unit

3. IO interface module for thin film deposition equipment

4. Wafer transfer robot control system

5. Process chamber solenoid valve drive interface

6. Gas flow controller signal docking board

7. Vacuum pressure sensor acquisition module

8. Electronic control unit for semiconductor clean testing equipment

9. Signal transfer board for plasma process equipment

10. Wafer stage motion control interface component

Product Specifications

1. Multiple digital input and output channels, supporting dedicated bus communication within the device.

2. The board comes with hardware fault detection, which can provide feedback on channel abnormal status.

3. The working temperature is 0-50 ℃, suitable for clean working conditions without condensation in the distribution cabinet.

The CHU2-IF-E8-48684-00 interface board serves as a signal relay component for semiconductor equipment, completing signal transmission between the main control board and on-site sensors and actuators, ensuring stable operation of the entire wafer process equipment.
