Yamaha KCX-M5810-030 driver board

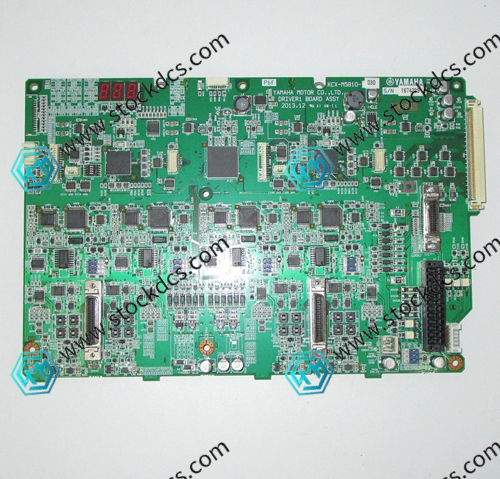

Yamaha KCX-M5810-030 driver board

Product Introduction

The Yamaha KCX-M5810-030 driver board is a specialized servo driver board for Yamaha SMT surface mount machines, responsible for driving multi axis servo motors and processing motion signals to ensure stable execution of mounting actions

Product Features

Multi axis servo integrated drive synchronous control with high precision, suitable for high-speed action requirements of surface mount machines

Built in multiple protection circuits for real-time detection of overload, overvoltage, and short circuit to reduce the risk of board damage

Native adaptation to Yamaha SMT machine control system with stable signal communication and strong compatibility

Industrial grade PCB boards are earthquake resistant, dynamic resistant, and dust resistant, and can operate continuously on the production line for a long time

Equipped with fault detection and feedback function, fault codes can be quickly output for easy equipment maintenance and repair

Product application areas

SMT fully automatic high-speed surface mount machine equipment matching

Electronic PCB circuit board SMT production line

Consumer electronics component mounting equipment

Semiconductor small component assembly equipment

Automotive electronic circuit board production line

Communication module automation assembly equipment

Industrial control motherboard SMT processing equipment

Automated LED bead mounting production line

Automated equipment for assembling sensor components

Industrial Automation SCARA Robot Motion Control System

Product Specifications

Compatible models Yamaha YV series surface mount machine

Function type: Multi axis servo motor drive and signal acquisition

Working environment: industrial workshop, room temperature environment, suitable for continuous operation of production line

The Yamaha KCX-M5810-030 driver board, as the core motion control component of Yamaha SMT machine, provides stable support for high-precision SMT operations and is widely used in electronic manufacturing automation production line maintenance and spare parts replacement
