WNC MODULE 50722/3 501894-001 Signal Processing Module

WNC MODULE 50722/3 501894-001 Signal Processing Module

Product Introduction

WNC MODULE 50722/3 501894-000 is a semiconductor equipment signal processing module that collects and processes various process sensing signals, completes signal amplification, filtering, and conversion, and transmits them to the equipment master control.

Product Features

1. High signal acquisition and conversion accuracy, strong noise reduction processing capability

2. Multi channel signal input, adapted to multiple sensor signals

3. Built in fault self check, quickly identify channel abnormalities

4. Board type original structure, can directly replace spare parts of the same model

5. Strong anti-interference ability, suitable for long-term continuous operation in clean workshops

Application Fields

1. Semiconductor etching equipment process signal acquisition and processing

2. Sensor signal conditioning for PVD/CVD thin film equipment

3. Signal conversion and transmission of plasma process equipment

4. Signal preprocessing for wafer inspection equipment

5. Maintenance and replacement of this module in the semiconductor production line

6. Signal acquisition unit for vacuum coating equipment

7. Material plasma processing equipment matching

8. Signal management of research vacuum experimental equipment

9. Signal processing of panel process equipment

10. Electrical control renovation of old semiconductor equipment

WNC MODULE 50722/3 501894-000 is a commonly used signal board in semiconductor equipment for stable processing of on-site sensing signals.

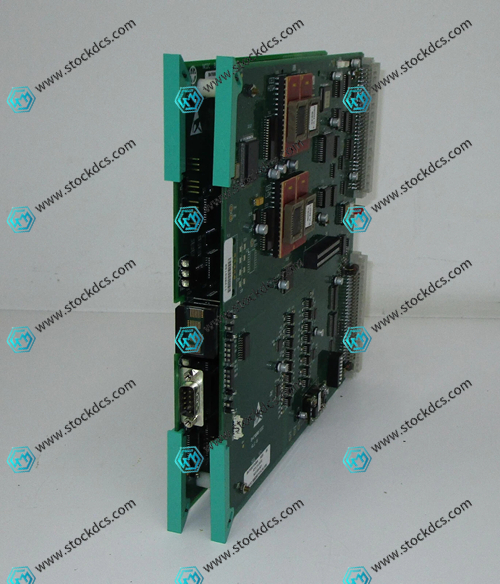

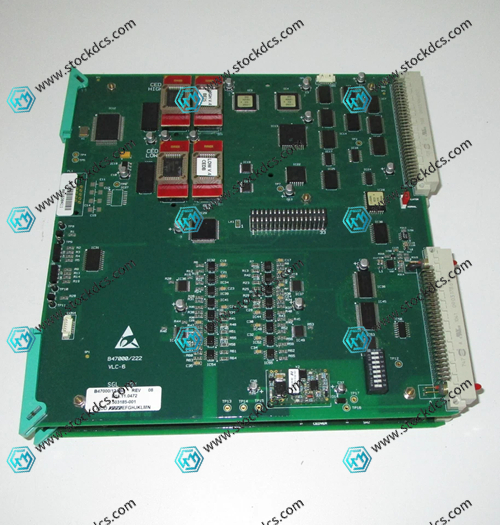

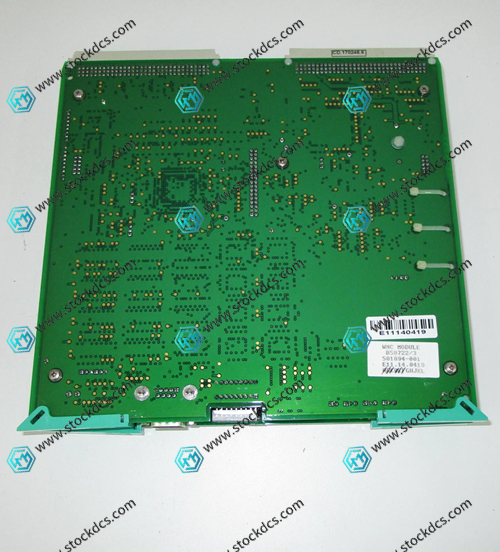

Product imag
