FANUC A20B-2002-0521/04A servo drive circuit board

FANUC A20B-2002-0521/04A servo drive circuit board

 Introduction

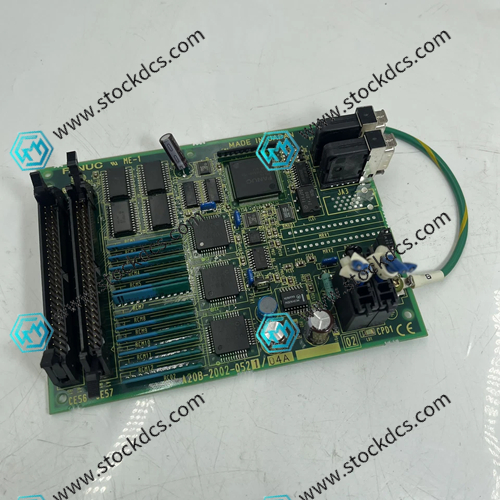

FANUC A20B-2002-0521/04A servo drive circuit board

This FANUC A20B-2002-0521/04A is a Fanuc operation panel I/O board used for CNC panel signal acquisition and output.

Fanuc CNC system matching panel IO board

Equipped with 48 input channels and 32 output channels

Handless MPG interface, compatible with multiple Fanuc systems

Responsible for transmitting key signals and circuit interaction on the operation panel

Suitable for industrial working conditions in the workshop, with stable anti-interference ability

When selecting, check the board identification. Different versions cannot be directly interchanged

It is strictly prohibited to plug or unplug wiring terminals with electricity, and anti-static measures should be taken during operation

Before boarding, check the circuit channel and confirm that the signal communication is normal

Long term storage using anti-static packaging to maintain a dry environment

Application

Signal matching for CNC lathe operation panel

IO maintenance of machining center control cabinet

0i 16i 18i series CNC system matching

Transformation of Signal Circuit for Machine Tool Console

Replacement of spare parts for CNC equipment control panel

The FANUC A20B-2002-0521/04A circuit board is responsible for the signal interaction function of the CNC equipment operation panel.

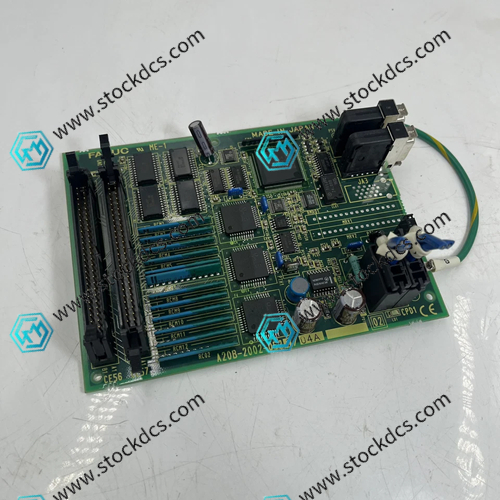

Product imag
