FANUC A16B-2201-0440/07B Controller Circuit Board

FANUC A16B-2201-0440/07B Controller Circuit Board

 Introduction

FANUC A16B-2201-0440/07B Controller Circuit Board

FANUC A16B-2201-0440/07B controller circuit board is a FANUC spindle control board, commonly used for replacing spare parts in old CNC lathe machining centers

Product Features

1 Japanese FANUC original spindle control board, exclusively for CNC machine tools, is a discontinued spare part

Responsible for spindle drive signal calculation, controlling spindle speed and operation logic

3 with photoelectric signal isolation to resist strong electromagnetic interference in the workshop

4-panel slot installation, compatible with corresponding spindle drive units from Naco

5 compatible with A16B-2201-0440/06B A16B-2201-0440/08B of the same series

6 built-in overcurrent and overload protection to prevent abnormal load from burning out the board

Equipped with a built-in digital display, it can quickly locate spindle alarm faults on site

8 industrial grade PCB boards, resistant to oil pollution and vibration environment in the processing workshop

Application Areas

1 FANUC CNC equipment spindle drive signal processing

2. Data communication docking between CNC system and spindle unit

3. Machine tool spindle speed adjustment and start stop control

4. Maintenance and replacement spare parts for old Fanuc CNC machine tools

5. Industrial control spare parts for metal cutting equipment

6 CNC lathe machining center spindle signal output

Collection and transmission of alarm signals for spindle units of 7 machine tools

There is not much stock of this board, mostly disassembled and inspected parts. Before installation, check the version to prevent FANUC A16B-2201-0440/07B controller circuit board spindle alarm shutdown

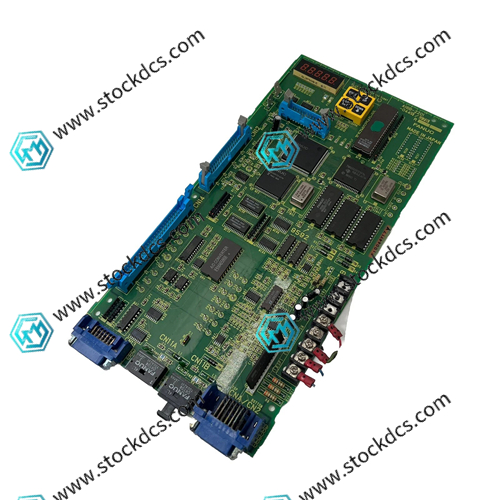

Product imag
