MITSUBISHI Q35B-E main substrate

MITSUBISHI Q35B-E main substrate

 Introduction

Let me introduce the MITSUBISHI Q35B-E main substrate, which belongs to the Mitsubishi Q series PLC base and is commonly used for maintenance and replacement of automation equipment

Product Features

As the foundation of the Q series PLC, it carries the power supply CPU and various functional modules

Comes with 5 module slots, which can be flexibly matched with I/O, communication, positioning and other modules

Support external expansion substrate, which can expand more module points

Onboard high-speed backplane bus, stable and fast data transmission between modules

Original factory standard slot design, direct module insertion and removal, easy replacement and installation of spare parts

Product Specifications

Model MITSUBISHI Q35B-E main substrate

Compatible with Mitsubishi MELSEC-Q series PLC modules

Built in 5 I/O module installation slots

Support the expansion of substrate bus connection

Adapt to the standard operating temperature of industrial control cabinets

Application Areas

PLC control system base for automated production line

Mitsubishi Q series PLC maintenance spare parts for mechanical equipment

Construction of complete electrical control cabinet for factory assembly line

Machine tool electrical control system renovation and upgrade supporting substrate

Main control base for various industrial automation equipment

Overall, this MITSUBISHI Q35B-E main substrate is the core base of the Q series PLC, with strong scalability, and is often used for industrial control projects and maintenance of old equipment

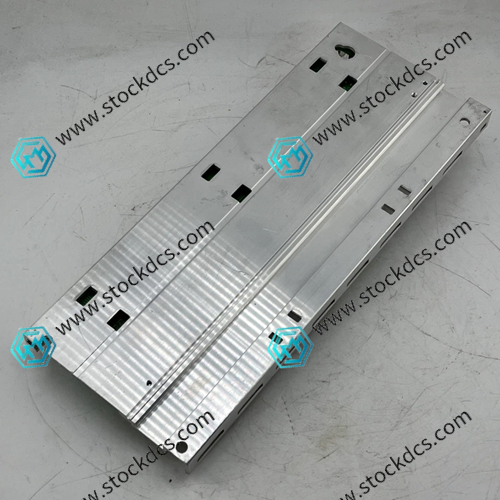

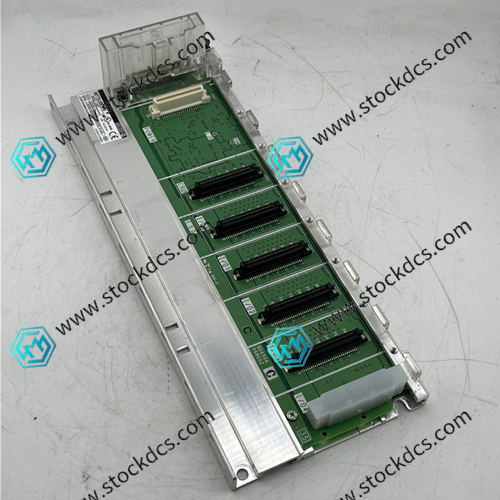

Product imag
