TEWS TVME200-10R Printed Circuit Board

TEWS TVME200-10R Printed Circuit Board

 Introduction

Let me introduce the TEWS TVME200-10R printed circuit board, which belongs to the VME bus carrier board and is commonly used for repairing and replacing old industrial control equipment.

Product Features

Modular slot design, can be freely matched with IP modules to expand signal interfaces

Equipped with onboard status indicator lights, the module's operational status can be quickly determined on-site

Adhere to the standard VME bus protocol and directly adapt to the original VME industrial control system

Interrupt supports both dialing and software settings, making debugging flexible

The board structure is stable and earthquake resistant, and can adapt to working conditions with large vibrations inside the cabinet

Product Specifications

Board specification 6U VME bus board

Equipped with four IP module slots

Using a 50 pin flat cable to lead out I/O signals

Working temperature ranges from minus 40 degrees Celsius to 85 degrees Celsius

Support A24 A32 memory addressing and IRQ1 to IRQ7 level seven interrupts

Application Areas

Industrial process control system, building modular I/O signal acquisition unit

Medical precision equipment, complete internal signal acquisition and processing

Communication equipment responsible for managing multi-channel signal transmission

Rail transit control system, collecting signals and executing logical processing

Various embedded measurement and control devices used as signal expansion carriers

This TEWS TVME200-10R has strong stability and is a commonly used VME carrier board in high reliability measurement and control scenarios.

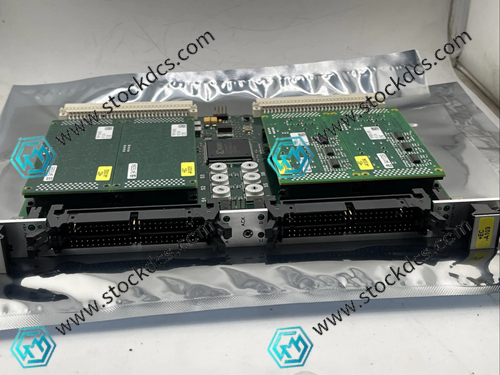

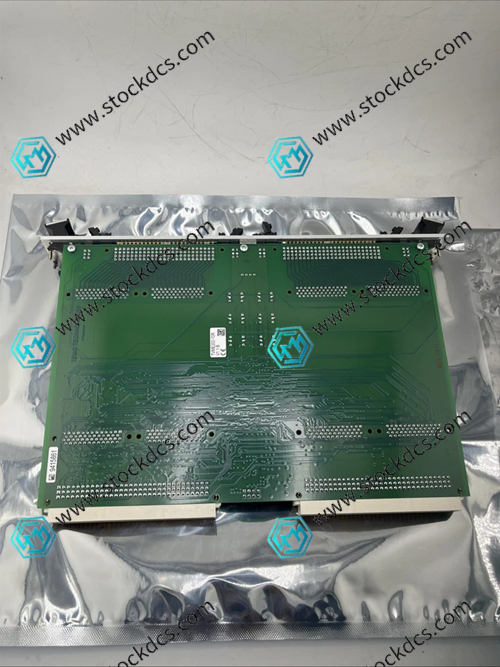

Product imag
