 Introduction

Excalibur Systems DAS-429PC/R4T2 Multi Channel Communication Module

beginning

Excalibur Systems DAS-429PC/R4T2 is an ARINC429 aviation bus dedicated communication module, which integrates multi-channel transmission and reception, stable data transmission, and is suitable for avionics testing and simulation scenarios.

Equipped with independent communication channels of 4 receivers and 2 transmitters, multiple bus synchronous transmission does not interfere with each other

Fully compatible with ARINC429 standard, supporting multiple adjustable bus transmission rates

Equipped with onboard cache, batch data collection without loss, read and write without lag

Single channel independent signal verification, real-time detection and reporting of communication faults

Support data timestamp marking for easy analysis of bus data replay in the later stage

Equipped with fault injection function, it can simulate abnormal working conditions to complete equipment testing

Optoelectronic isolation channel design, isolating external electromagnetic interference to ensure signal purity

Standard PC card specifications, direct plug-in and installation of the chassis, convenient replacement and maintenance

Complete driver package, compatible with mainstream Windows and Linux systems

Comes with bus monitoring software to visualize real-time data transmission and reception status

Multi layer shielded PCB wiring, resistant to workshop frequency conversion and RF clutter interference

Three proof coating board body, moisture-proof and dustproof, suitable for industrial laboratory environment

Low power component layout, controllable temperature rise during long-term full load operation

Reinforce welding process, resist equipment vibration, and prevent component detachment and failure

Compliant with aviation electronics industry standards and meeting the requirements for overall testing compliance

ending

Excalibur Systems DAS-429PC/R4T2 multi-channel communication module has sufficient channels and complete functions, and is the core supporting module for avionics bus simulation and data acquisition.

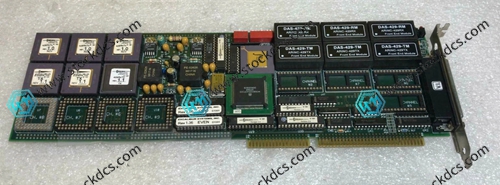

Product imag
