TEL TPFB300-1 5880-000051-V1 Printed Circuit Board

TEL TPFB300-1 5880-000051-V1 Printed Circuit Board

 Introduction

TEL TPFB300-1 5880-000051-V1 Printed Circuit Board

beginning

TEL TPFB300-1 5880-000051-V1 is a communication PCB board specifically designed for semiconductor equipment. It comes with original factory equipment, stable signal transmission, and is compatible with continuous production line operation.

Original adapted TEL wafer equipment, can be assembled and used directly without debugging

Multi channel independent communication line, synchronized transmission of multiple sets of data without crosstalk

Precise impedance control of the circuit, low high-frequency signal loss, and distortion free transmission

Onboard optoelectronic isolation circuit, isolating strong electrical interference and protecting the main control

Multi layer shielded wiring to resist workshop frequency conversion electromagnetic clutter interference

Gold plated solder pad contacts, anti-oxidation and stable contact for long-term use

High TG substrate is resistant to high temperatures, and there is no delamination or foaming in welding and temperature changing environments

Integrated hardware self-test, automatic verification of communication channel status upon startup

Standard plug-in terminals, neat wiring, time-saving maintenance and replacement

Low power circuit layout, long-term full load with low temperature rise and no downtime

PCB sprayed with three proof coating, dustproof and moisture-proof, suitable for clean workshops

Reinforced component welding, resistant to equipment vibration and less prone to detachment

Built in signal error correction mechanism to reduce data loss and error reporting

Compact card insertion structure, saving installation space inside the device

Lead free process production, compliant with RoHS environmental standards

ending

TEL TPFB300-1 5880-000051-V1 printed circuit board has stable communication, anti-interference and durability, and is the core board for TEL equipment signal interaction.

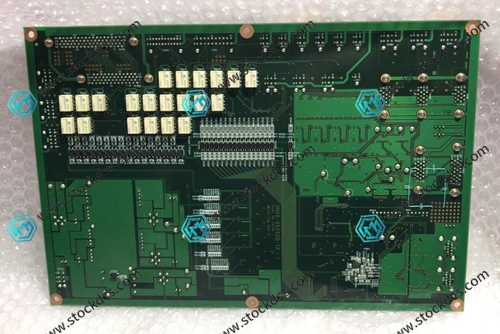

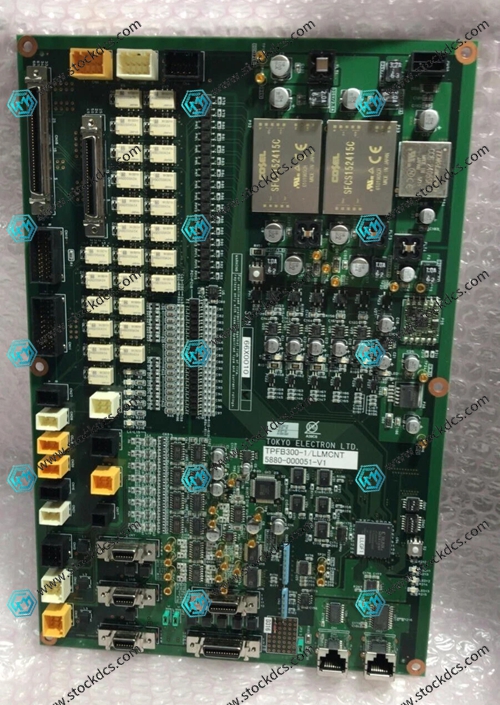

Product imag
