Leica 301-389.030 Printed Circuit Board

Leica 301-389.030 Printed Circuit Board

 Introduction

Leica 301-389.030 Printed Circuit Board

beginning

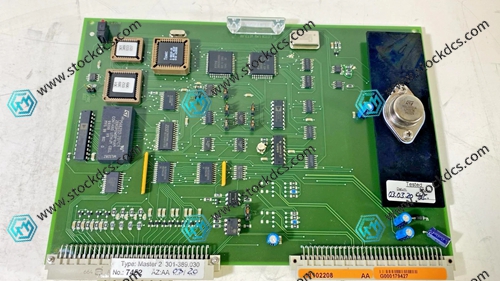

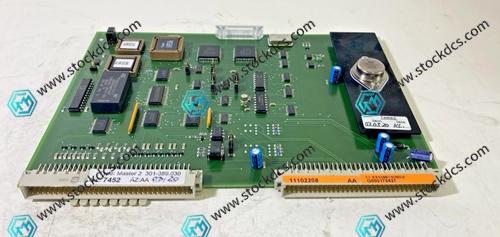

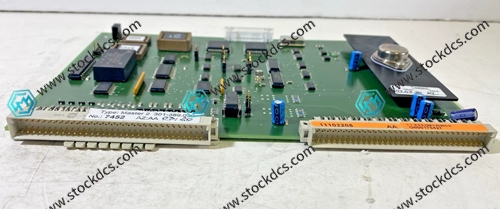

Leica 301-389.030 is a specialized VME bus Master2 main control PCB board for Leica INS3000 testing equipment. It is manufactured in Germany and is responsible for the overall signal calculation and bus communication of the machine, adapting to the long-term stable operation of precision optical testing equipment.

Standard VME plug-in card architecture, compatible with Leica INS3000 rack slot, direct insertion installation without modification

Multi layer precision impedance control circuit, high-speed bus signal transmission without distortion and crosstalk interference

Integrated dedicated main control processing chip, coordinating image acquisition, motion axis control, and sensor data computation

Dual standard VME bus interface, fast data exchange speed between boards, and sensitive response to machine instructions

Onboard multi-channel optoelectronic isolation channels, strong and weak electrical separation, isolation of high-voltage impact protection core chip

Thickened high TG industrial FR4 substrate, not easily deformed in temperature changing environment, no delamination or foaming in the circuit

Full board immersion gold process solder pads, long-term use anti-oxidation, stable solder joints without virtual soldering faults

Integrated hardware self-test circuit, automatically verifies the status of the bus, chip, and acquisition channel upon startup

Built in EMI multi-layer shielding wiring to resist electromagnetic interference from optical equipment motors and light sources

Equipped with a voltage stabilizing filter power supply circuit, the workshop voltage maintains stable signal output even with slight fluctuations

Reinforce the welding process of electronic components, resist equipment vibration during operation, and prevent component detachment and detachment

Reserve standardized testing points for easy and efficient troubleshooting and signal detection operations

Compact integrated component layout, fully utilizing board space, neat and simple wiring of the entire machine

Low power component combination, long-term full load operation with low temperature rise and no overheating shutdown error

Compliant with EU RoHS lead-free environmental standards, compatible with precision optical equipment, the entire machine is compliant with factory regulations

ending

Leica 301-389.030 printed circuit board has stable bus communication, reliable operation, and strong durability, making it the core control board of Leica INS3000 optical inspection equipment.
