Matrox Y7116-04 Image Acquisition Card

Matrox Y7116-04 Image Acquisition Card

Product Details Introduction

Matrox Y7116-04 Image Acquisition Card Product Features

beginning

Matrox Y7116-04 industrial visual acquisition card, four channel synchronous acquisition, compatible with device visual inspection, with the following core features:

PCIe high-speed bus, fast image transmission speed without buffering

Four independent image channels, capable of simultaneously connecting multiple cameras

Onboard high-capacity cache, stable caching of image data streams

Support external triggering, accurately and synchronously capture moving workpieces

Built in FPGA preprocessing to reduce CPU load on the host

Compatible with mainstream camera protocols such as Camera Link and GigE Vision

Support ultra-high resolution image acquisition, with complete picture details

Supporting MIL visual function library, simple secondary development

Compatible with mainstream visual software such as Halcon and LabVIEW

Wide temperature working range, stable operation of high and low temperatures in the workshop

Standard chassis cover, directly installed on desktop industrial control computer

Multiple signal filtering to resist on-site electromagnetic interference

Complete driver program, compatible with multiple versions of Windows system

Real time image denoising, cropping ROI area acquisition function

Original factory standardized board, direct replacement of spare parts of the same model

ending

Matrox Y7116-04 multi-channel synchronous acquisition, strong compatibility, is a universal acquisition accessory for industrial machine vision inspection.

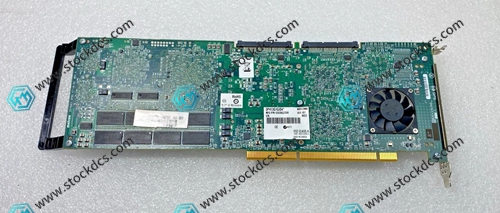

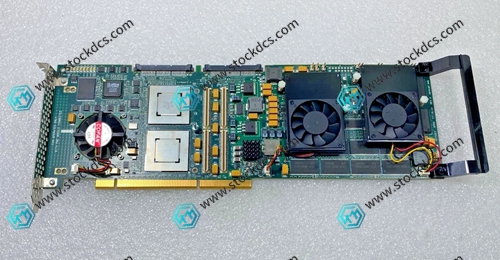

Product imag
