ADAS STB282 Industrial Dedicated Bus Board

ADAS STB282 Industrial Dedicated Bus Board

Product Details Introduction

ADAS STB282 Industrial Dedicated Bus Board

ADAS STB282 is an 8-channel analog acquisition bus board for industrial control systems, which mainly collects analog signals such as on-site pressure, temperature, and voltage and uploads them to the main control unit through the bus.

Equipped with 8 independent analog acquisition channels, it can synchronously collect multiple on-site sensing signals

Built in photoelectric isolation circuit effectively shields on-site electromagnetic interference and avoids signal distortion

Supports standard industrial bus communication, stable data transmission, and strong real-time system performance

Integrated overvoltage and overcurrent protection can prevent wiring errors from causing damage to the board

Equipped with channel operation indicator lights, it is convenient to quickly locate abnormal collection points

Standard plug-in card design, easy to disassemble and replace cabinet, convenient for on-site maintenance

Industrial wide voltage power supply, sustainable and stable operation under voltage fluctuation conditions

Wide temperature operation design, suitable for use in high and low temperature, humid dust industrial environments

Gold plated finger interface, wear-resistant and anti-oxidation, reliable electrical contact for long-term plugging and unplugging

Automatic hardware self-test upon power on, capable of quickly identifying communication faults between channels and buses

Flame retardant multi-layer circuit board with excellent insulation performance, reducing short-circuit safety hazards

Built in signal filtering circuit effectively filters out clutter and improves data acquisition accuracy

Support cascading multiple boards of the same type for bus connection, flexible expansion of analog acquisition points

Original factory patch welding process, earthquake and impact resistance, low long-term operation failure rate

Perfectly compatible with ADAS series industrial control systems, with simple parameter settings and excellent compatibility

The ADAS STB282 industrial dedicated bus board has precise data acquisition and strong anti-interference ability, and is widely used in automated production lines such as printing, metallurgy, and chemical engineering. It is a commonly used core spare part for analog signal acquisition.

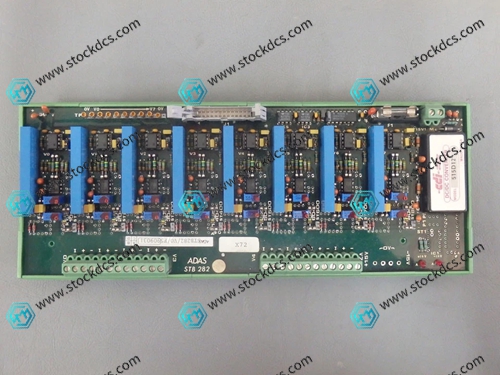

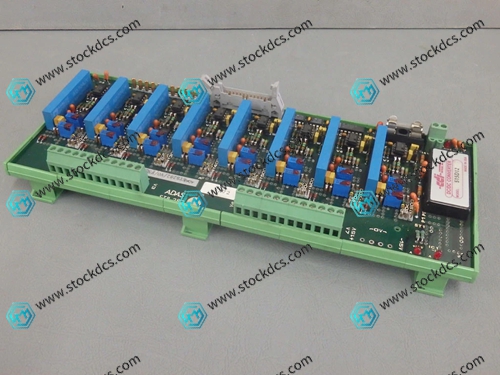

Product imag
