Bachmann BS203 00009183/00 006 Backplane Module

Bachmann BS203 00009183/00 006 Backplane Module

Product Details Introduction

Bachmann BS203 00009183/00 006 Backplane Module

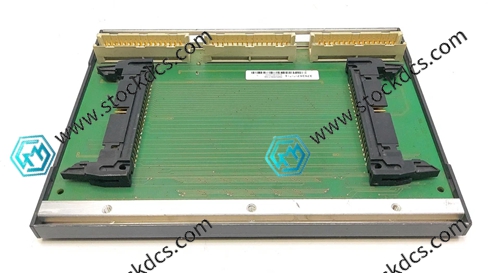

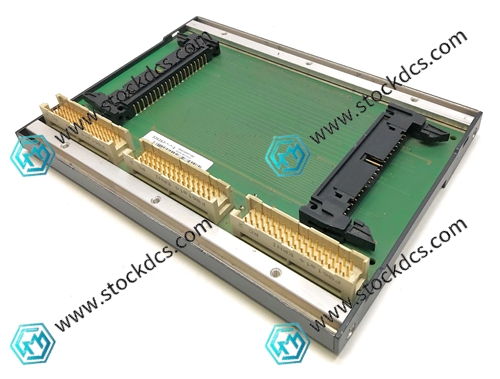

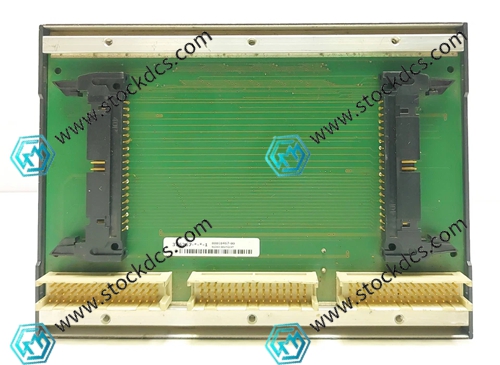

Introduction: Bachmann BS203 (00009183/00 006) is a 3-channel backplane module for the Bachmann M1 control system. It serves as the system's core bus base, providing mechanical support and electrical interconnection for the CPU, I/O, and communication modules.

3-slot design, compatible with M1 series CPU, I/O, and communication modules, compact expansion.

M1 dedicated backplane bus, high-speed parallel transmission, real-time and stable data exchange.

24V DC power supply (18-36V wide voltage), distributes power to each module, maximum 10A.

Standard DIN rail installation (35mm), snap on design, easy to disassemble and assemble.

Industrial grade seismic resistance, module anti loosening fixation, suitable for vibration conditions.

Wide temperature operation, working at -30 ℃~+60 ℃, storage at -40 ℃~+85 ℃.

Humidity tolerance of 5% -95% (no condensation), stable operation in harsh environments.

IP20 protection, metal reinforced casing, suitable for installation inside control cabinets.

Support hot plugging and online module replacement without interrupting system operation.

Compact size, 55mm wide by 3 slots, 23mm deep, saving cabinet space.

Low power design, efficient power distribution, and reduced system energy consumption.

Built in short circuit/overcurrent protection ensures the safety of modules and systems.

Grounding protection terminal, in compliance with Class 1 protection standard.

Original Austrian manufacturing, model 00009313-00, reliable quality.

Suitable for M1 system scenarios such as wind power, water treatment, and industrial automation.

Conclusion: The Bachmann BS203 backplane is the high-speed interconnect and power core of the M1 system, with a robust structure and flexible expansion, making it an ideal base solution for small control systems.
