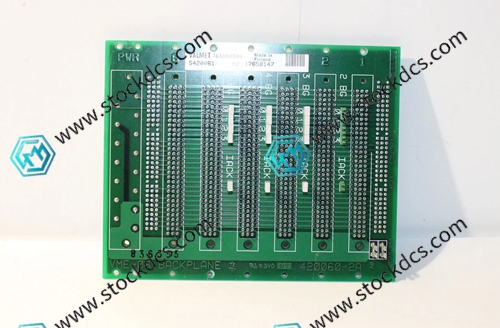

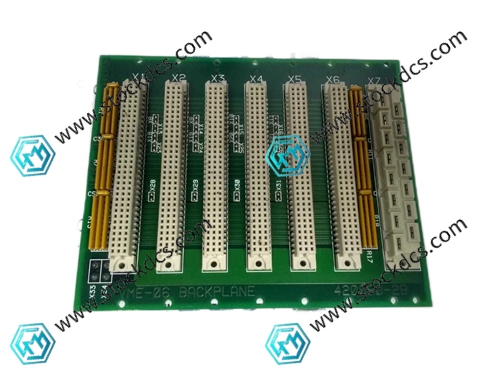

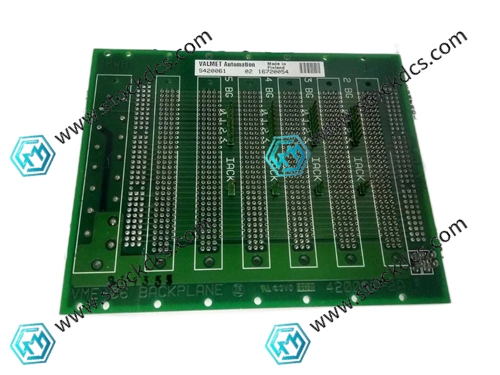

Valmet Metso S420061 Backboard (I/O Backboard)

S420061 is a multi slot I/O backplane for the Valmet Metso Damatic DNA/XD system, used for installing and interconnecting various I/O modules, providing power, signal bus, and mechanical positioning. It is a standard backplane inside the control cabinet.

System adaptation: Designed specifically for Metso DNA/Valmet XD, compatible with CPUs, power supplies, and digital/analog I/O cards of the same series.

Slot specifications: Standard multi slot layout, supporting mixed insertion of DI/DO/AI/AO modules, flexible expansion.

Bus and Power Supply: The backplane integrates a high-speed data bus and 24VDC power distribution to provide power and communication for various cards.

PCB process: multi-layer board, impedance matching, good signal integrity; With a shielding layer, it has strong anti-interference ability.

Reliable connection: Gold plated fingers, wear-resistant and anti-oxidation, long insertion and removal life, low contact resistance.

Electrical isolation: Isolation design is provided between modules, backboards, and system sides to reduce common ground interference.

Working environment: Operating at a wide temperature range of -20 ° C to+60 ° C, suitable for industrial sites.

Protective coating: Conformal moisture-proof and dustproof coating, suitable for wet/dusty working conditions such as papermaking, chemical industry, energy, etc.

Hot swappable support: Supports online module replacement without interrupting system operation.

Status monitoring: Equipped with onboard monitoring circuit, coupled with module LED to quickly locate faults.

Power supply range: 18-30VDC wide voltage, compatible with industrial standard 24V power supply.

Protection mechanism: Built in overcurrent and short-circuit protection, the faulty module does not affect the entire backplane.

Installation method: Standard 19 inch rack installation, compatible with S420154 and other racks.

Compliance certification: CE, RoHS, compliant with industrial environmental and safety standards.

Original factory quality: Made in Finland, industrial grade components, good long-term stability.
